Burglarproof Car Parking Locks Maximum Weight Load-bearing

Quick Detail:

1. Name: Parking Lock

2. Protection Grade: IP68

3. Application: Parking System

4. Standard Voltage: DC12V

5. Operational Current: 0.4A

6. Certificate: CE, ISO, SGS

7. Net Weight: 8KG

8. Up to Down Time: 4-6s

Specification

Functions & Features:

1. Energy-saving: uses ”CHAMPION” battery, the power can last for nearly a year;
2. Safe: Battery connection uses anti-disconnecting design to avoid wrong connection;
3. Durable: the cabinet is made of die-casted Zinc alloy with high quality(thickness is 5mm); it can afford 5 tons. The cabinet is coated with varnish, can be water proof and anti-rust in harsh weather. Swing arm is made of fiber-reinforced nylon, so it will not deform even after car crushing;
4. High hermetic: the cabinet is tightly closed, and protection grade is IP68.It is waterproof and dust-proof;
5. Auto-reposition: The swing arm will auto go back lock-postion after external force changes its position;
6. Noise-free: bearing transmission design of the motor makes almost zero noise;
7. Burglarproof: mounting bolts are placed inside of the cabinet, so no one can open it without the key;
8. Easy installation: Only need to fix it via 4 bolts.

Product Application

1, when there is no car in the parking stall, the parking lock will rise up to its highest position

2, when there is a car in the parking stall, the parking lock will fall down to its lowest position

3, if remote controller is needed, firstly you need to cut off the power and wait for three seconds; secondly you should plug in power again, when the red light is on, press two buttons of controller at the same time. At this moment, both red light and green light will be on, after the red is off, you can the remote controller

4, if you want to control the parking lock in the car, you need to put it in the front of the windscreen, and press the button for 1 or 2 seconds.

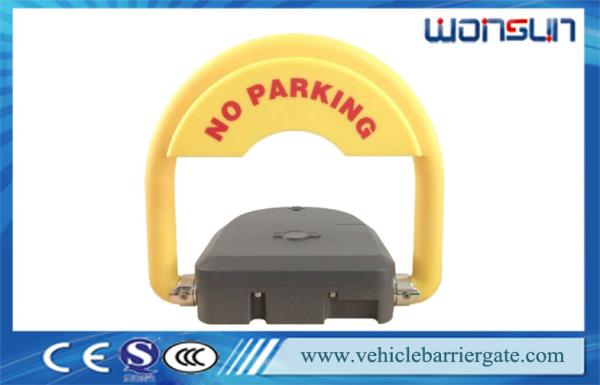

Parking Lock

Model Number: WSCP661

1. Dimension: 550*120*100 thickness: 3.5MM

2. Aluminum die-casting alloy can resist heavy car pressure.

3. Colorfast and ultraviolet-proof high hardness electrostatic spraying process is not debonded.

4. 3M warning reflective film is colorfast and not easy to be debonded.
