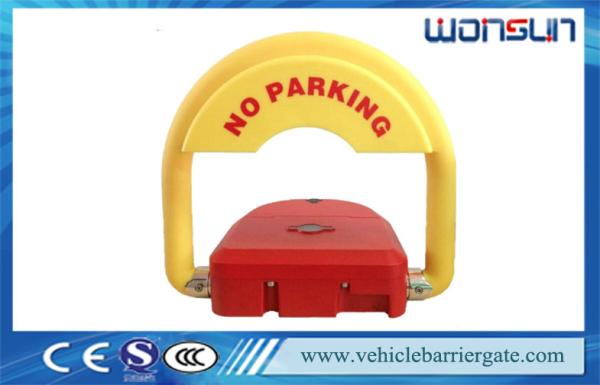

Remote Control Automatic Car Parking Lock Waterproof , DC12V
Quick Detail:
1. Name: Parking Lock
2. Protection Grade: IP68
3. Application: Parking System
4. Standard Voltage: DC12V
5. Operational Current: 0.4A
6. Certificate: CE, ISO, SGS
7. Net Weight: 8KG
8. Up to Down Time: 4-6s
Specification
Model NO. | WSCP661 |
Overall Dimension | 357*370*82.5MM |
Working Temperature | -40°C~60°C |
Working Voltage | DC12V |
Battery Voltage | DC12V, 7Ah |
Operational Current | 0.4A |
Running Time | 4-6s |
Remote Control Distance | ≤15m |
Vertical Position Height | 340mm |
Horizontal Position Height | 82.5mm |
Maximum Bearing Weight | 5 tons |
Protection Grade | IP68(the highest level in Ingress Protection) |
Functions & Features:
1. Energy-saving: uses ”CHAMPION” battery, the power can last for
nearly a year;
2. Safe: Battery connection uses anti-disconnecting design to avoid
wrong connection;
3. Durable: the cabinet is made of die-casted Zinc alloy with high
quality(thickness is 5mm); it can afford 5 tons. The cabinet is
coated with varnish, can be water proof and anti-rust in harsh
weather. Swing arm is made of fiber-reinforced nylon, so it will
not deform even after car crushing;
4. High hermetic: the cabinet is tightly closed, and protection
grade is IP68.It is waterproof and dust-proof;
5. Auto-reposition: The swing arm will auto go back lock-postion
after external force changes its position;
6. Noise-free: bearing transmission design of the motor makes
almost zero noise;
7. Burglarproof: mounting bolts are placed inside of the cabinet,
so no one can open it without the key;
8. Easy installation: Only need to fix it via 4 bolts.
9. Waterproof: The control system and external connection are
sealing waterproof.
Product Application
1, when there is no car in the parking stall, the parking lock will
rise up to its highest position
2, when there is a car in the parking stall, the parking lock will
fall down to its lowest position
3, if remote controller is needed, firstly you need to cut off the
power and wait for three seconds; secondly you should plug in power
again, when the red light is on, press two buttons of controller at
the same time. At this moment, both red light and green light will
be on, after the red is off, you can the remote controller
4, if you want to control the parking lock in the car, you need to
put it in the front of the windscreen, and press the button for 1
or 2 seconds.
