Technical Parameter List
| Working temperature(motor): | -30℃~+70℃ |
| Rated voltage: | DC24V |
| Running speed | 2.5s-8s |
| Rated current | 9.5A |
| Rated power | 150W |
| No-load speed | 1850rpm |
| Rated speed | 1400rpm |
| Rated torque | 59.6N.m |

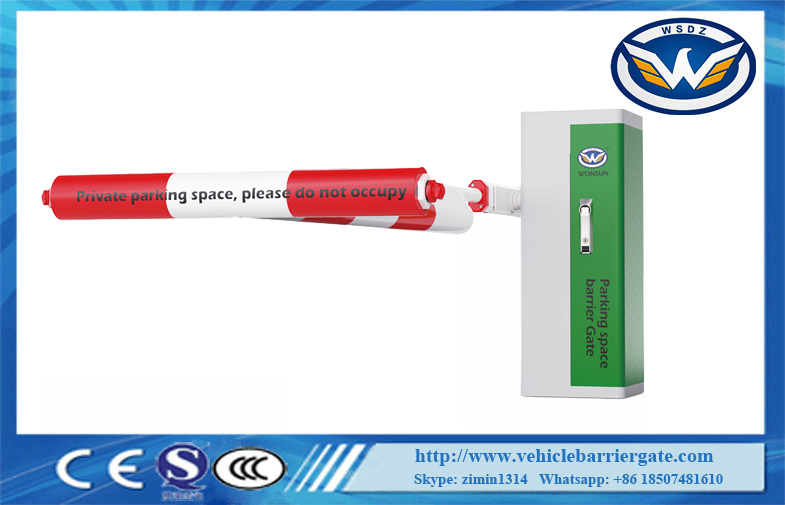

Parking Barrier Gate Features:
1. The running speed can be adjusted from 2.5s to 8s
2 Arm can be quickly interchanged.
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 24V backup battery interface(Can be charged by using solar
energy)( optional)
10 RS485 or CAN network communication interface(no need to install
module)
11 Connector for traffic light(AC220V,power less than 40W)
The parameter for selecting the spring
| Arm type | Arm length | Use of spring |
| Type | Dimension(Wire Diameter*Length) |
| 100*45 Straight arm | 6m | Tension spring | 4.5+5.5 |
| 5m | 4.0+5.5 |
| 4.5m | 4.5+4.5 |
| 4m | 4.5+4.0 |
| 3.5m | 4.5 |
| 3m | 4.5 |
| 80*45Straight arm | 6m | 5.5+4.0 |
| 5m | 5.5+4.0 |
| 4.5m | 4.5+4.5 |
| 4m | 4.5+4.0 |
| 3.5m | 4.5 |
| 3m | 4.0 |
| Two fence arm | 4.5m | 5.5+5.5 |
| 4m | 4.5+5.5 |
| 3.5m | 4.5+4.5 |
| 3m | 4.5+4.5 |
| 90 degree arm | 5m | 5.5+4.5 |
| 4.5m | 5.5+4.5 |
| 4m | 4.5+4.5 |
| 3.5m | 4.5+4.5 |
| 3m | 4.5+4.0 |
| Three fence arm | 4.5m | 5.5+6.8 |
| 4m | 5.5+5.5 |
| 3.5m | 4.5+5.5 |
| 3m | 4.5+4.5 |
| Remark:6.8 yellow,5.5 blue,4.5 red,4.0 green |
(the parameter is based on the company’s arm)
Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A 24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only need
to connect the switch signal output by the ground sensor.
5. Parking system interface wire control interface: connect the
switch signal from the system to this interface to
control the barrier.
6. Starting limit and landing limit signal output: output COM/NO/NC
switch signal to the system to inform the current
state of the barrier.
7. RS485 or CAN communication interface: PC software can be used to
manage more than 15 barriers.
Function setting parameter table
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
