The 4th generation non-spring servo motor ultra-high-speedbarrier
gate has made a breakthrough in
solving thetechnical problem that traditional barier gates need
springbalance to operate smoothly. The 4th
generation non-springservo motor ultra-high-speed barrier gate
matches the latestdeveloped inflatable arm,
which is very lightweight andsolves the technical problem of
requiring both speed andlong barrier arm length
while maintaining stable operation.
Toll Barrier Gate Features:

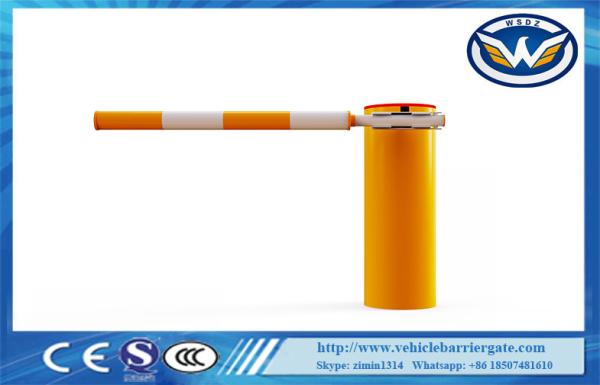

The 4th generation non-spring servo motorultrahigh-speed barrler
gate adopts the industry's moststylish round barrier
housing design, with integratedmechanical and electrical design,
left and right direction canbe quickly interchange,
high-precision and long lifeplanetary reducer design, high-speed
and high-torque ACservo motor design, ultra-high-speed
operation intelligentdriver, can operate smoothly and accurately in
0.2 seconds.fully realizing fast passage of the highway
ETC lanes, and canwork continuously for more than aver 10 million
times timesfor over 20,000 hours, reaching military-grade
lifespan. ittruly achieves safety, stability, reliability,
durability.innowation, and high-quality high-end products
Toll Barrier Gate Functions:
1. Operation speed can be adjusted.
2. Slow up and slow down can be adjusted.
3 The limit angle can be adjusted.
4. Left and right direction can be quickly interchanged.
5. The barrier arm can be manually operated in case of
powerfailure.
6, 418 frequency leaming code anticopy remote controller.7.
Infrared photocell sensor lO signal input function.
8. Loop detector and radar lO signal anti-collision signal
inputfunction.
9. Up, down and stop lO signal input function.
10. Counting (fleet) function.
11 LED light lO signal output function.
12. Traffic light lO signal output function.
13. Up and down in place, normally open and normally closedsipnal
output function.
Plane
14.RS485 communication output function.
15.Delay arm drop function.
16.Arm auto-reverse function.
17. Automatic lifting function when power is off
(requiresadditional power storage module).
18. l0 port single-key cycle up and down function.
19. Loop detector normally open and normally closed function.20.
One car and one arm to prevent toll evaslon function.
21 Anti-collision alarm function (requires additional
fee,installation of alarm and sensor)..
22. Fire linkage signal input function.
23. The lO port closes the signal input function.
24.24V storage battery input function.
Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only need to
connect the switch signal output by the ground sensor.
5. Parking system interface wire control interface: connect the
switch signal from the system to this interface to control
the barrier.
6. Starting limit and landing limit signal output: output COM/NO/NC
switch signal to the system to inform the current
state of the barrier.
7. RS485 or CAN communication interface: PC software can be used to
manage more than 15 barriers.
Product Maintenance
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000
times.
4 Check the easily worn-out parts(like the spring,limit
switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case
like big object screening,battery exhausting,
extreme weathers.
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
