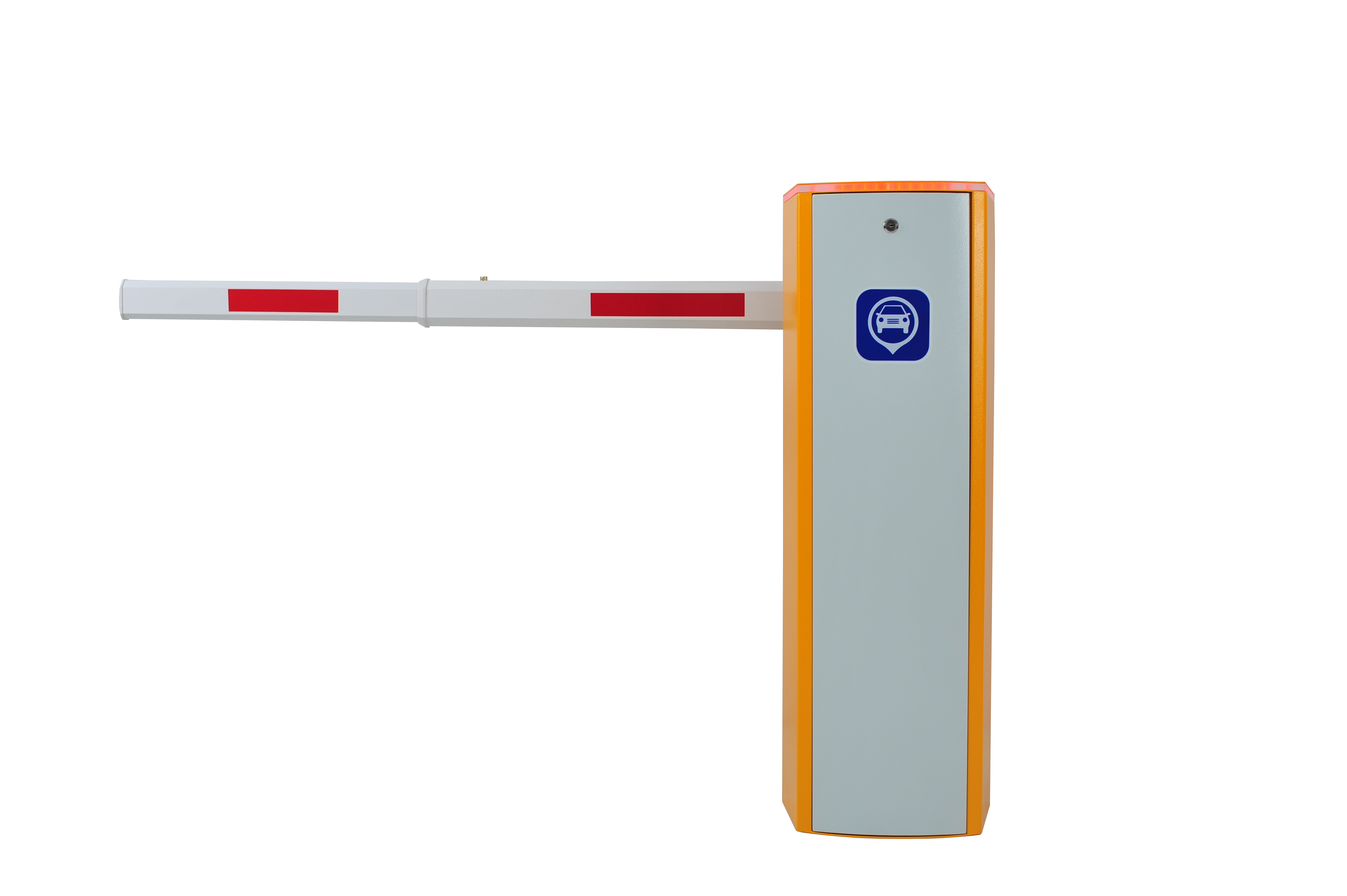

LED Light DC Brushless Traffic Barrier Gate Speed Adjustable For
Parking Lot
Advantages:
1. Special housing design that LED light around the top cover
2. 5th Generation DC Brushless motor
Technical parameters:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.5s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 59.6N.m |
| Protection grade | IP54 |
Rated speed | 1400rpm |
Relative humidity | ≥85% |
Remote control distance | ≤100M(in the open place) |
Rated current | 9.5A |
Function setting parameter table:
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | | Corresponding PWM duty
cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 40 | | Corresponding PWM duty cycle
25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the
less likely it is to shake the arm
when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the
less likely it is to shake the arm
when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the
faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the
faster the speed
|
Traffic Barrier Gate Features:
1 The running speed can be adjusted from 1.2s to 3s, 2.5s-6s
optional
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
Equipment installation:
Please select the correct type of barrier gate according to the
specifications of
the pace,and then fix the barrier cabinet with expansion
bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be
done according to the site conditions,
and also make the cast-in-place basement for the non-concrete
ground.
FAQ:
Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is
the professional manufacturer
of high-end intelligent parking barrier gate.
Q3.How about payment terms our company provide?
A: T/T / link
Q4.Which is your min order?
A: 1 piece
Q5.Model color size and craft for all barrier gates can be
customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your
company on product
Product Maintenance
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000
times.
4 Check the easily worn-out parts(like the spring,limit
switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case
like big object screening,battery
exhausting,extreme weathers.
