Special Servo Motor 304 Stainless Steel Vehicle Atomatic Boom
Barrier Gates For Smart Parking System
DZ-290 has 304 stainless steel 2.0mm thickness, suitable for
coastal areas, or scenes that are affected by the harsh
environment, anti-corrosion, anti-rust, and never fade!
Quick Detail:
Name: Special Servo Motor 304 Stainless Steel Barrier Gate
Operating temperatures: -35 to 65°C
Packing size: 1,020*365*467mm, weight 50kg
Usage: Highway, parking lot, community, hotel and factory
Voltage:24/100/240VAC, 50/60Hz
Model Selection and Differences
Boom Shape | Max Boom Length | Speed |
Straight boom(80*45mm) | ≥2.5 m | 0.6 s |
≥3 m | 0.9 s |
Straight boom(100*45mm) | ≥4.5 m | 3 s |
| ≥6 m | 6 s |
90 degree, Articulated boom(80*45mm) | ≥3 m | 1.8 s |
≥3.5 m | 3 s |
| ≥5 m | 6s |
180 degree, Articulated boom(80*45mm) | ≥3 m | 1.8 s |
≥4 m | 6 s |
Specifications
| Model | DZ-290 |
| Working Temperature | -35℃～+65℃ |
| Voltage | 24/100/240VAC, 50/60Hz |
| Rated power | 200W |
| Relative humidity | ≤90% |
| Remote control distance | ≤100m |
| Speed | 0.9s-8s, 0.6s-8s |
| Max boom length | 2.5-6 meters |
| Motor No-load speed | 3000r/min |
| Protection Degree | IP44 |
Functions & Features
1) Open and close speed adjustable
2) Arm direction left and right can change easily
3) When power off, manual open and close arm, and lock itself.
4) Open and close control input
5)Counting (fleet) input
6) Delay close arm function(1-300 sec, adjustable)
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function
(optional)
9) Open and close arm speed deceleration function
10) Traffic light interface
11) RS485 communication module (optional)

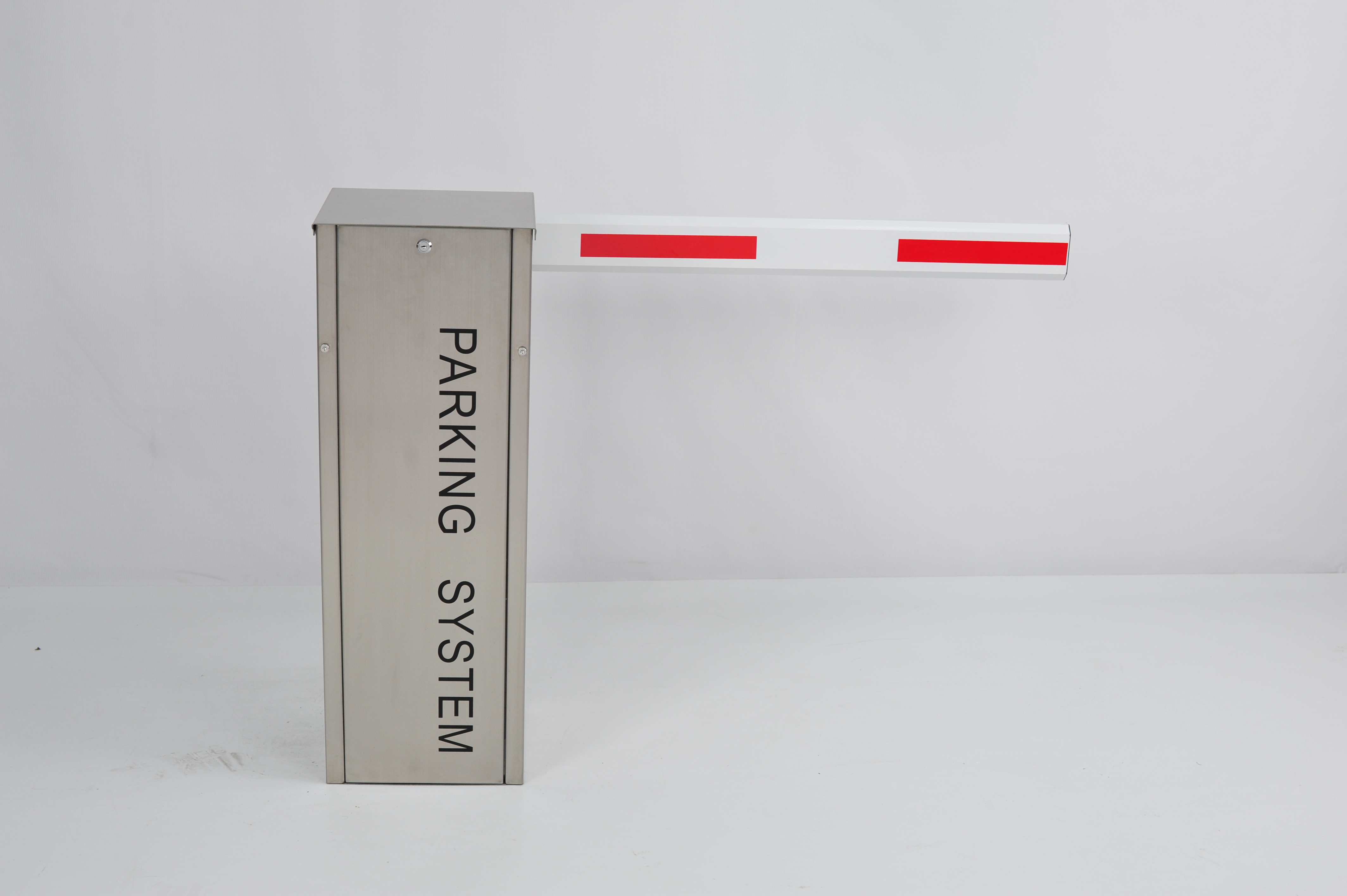

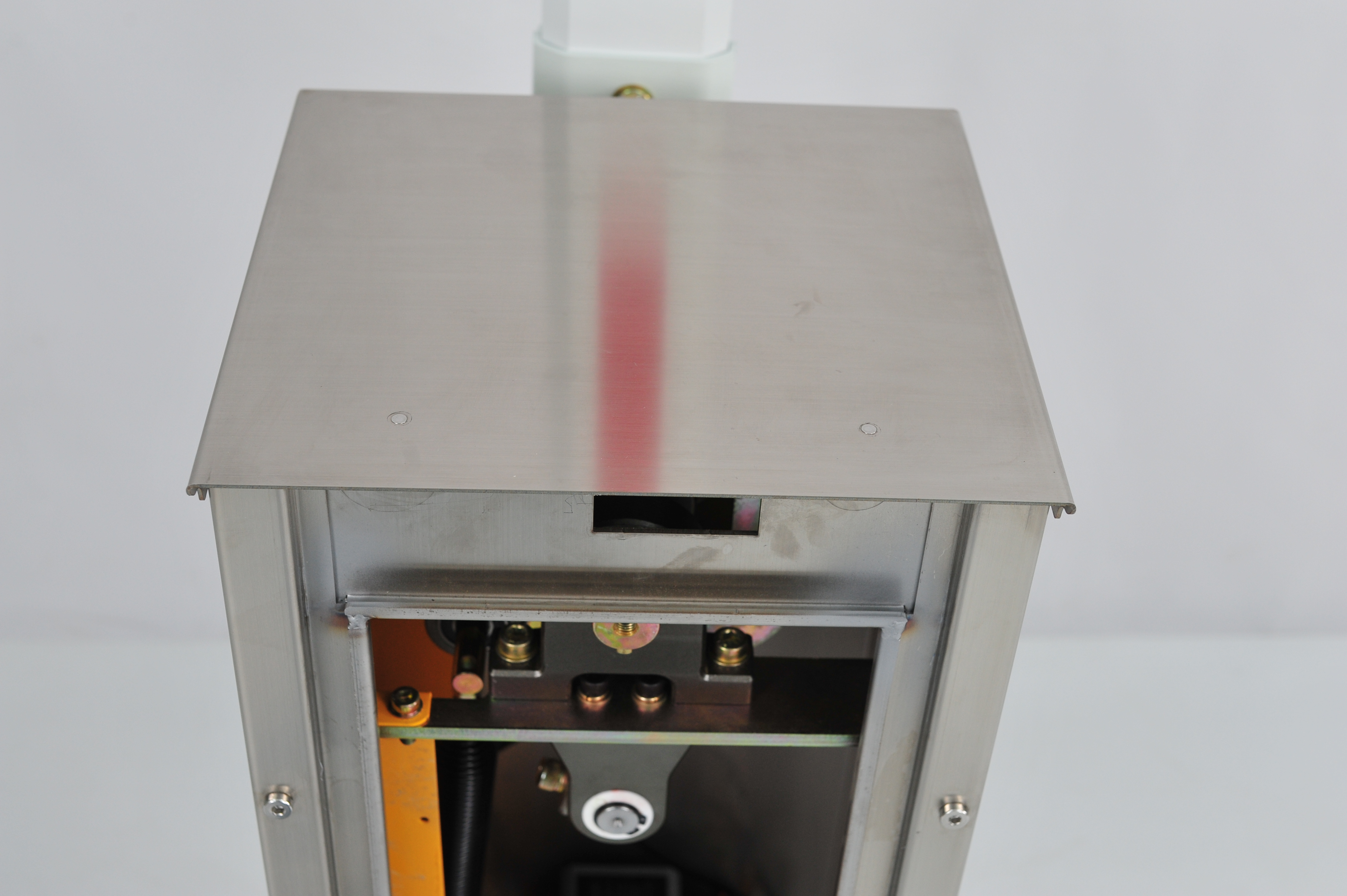

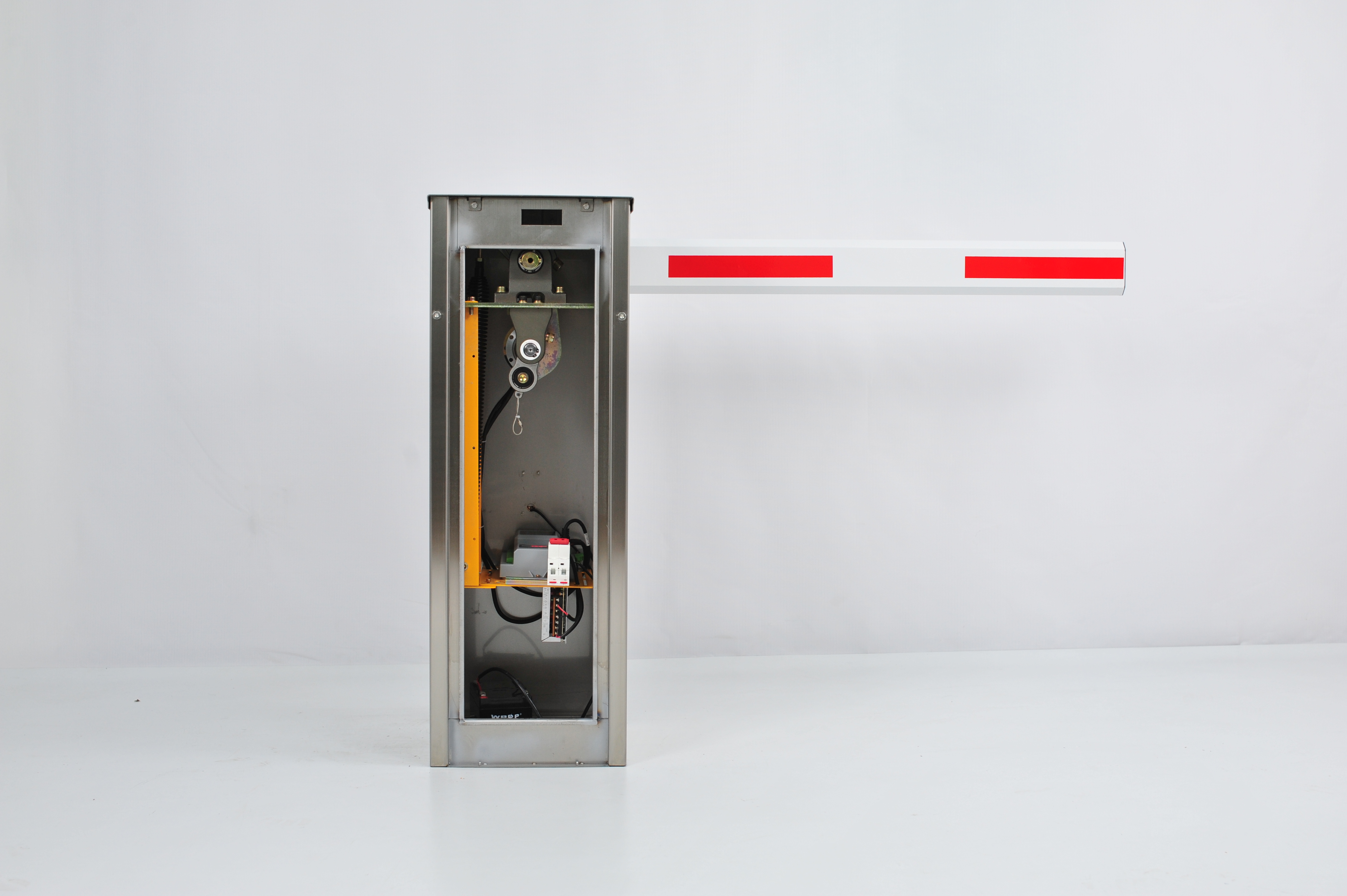

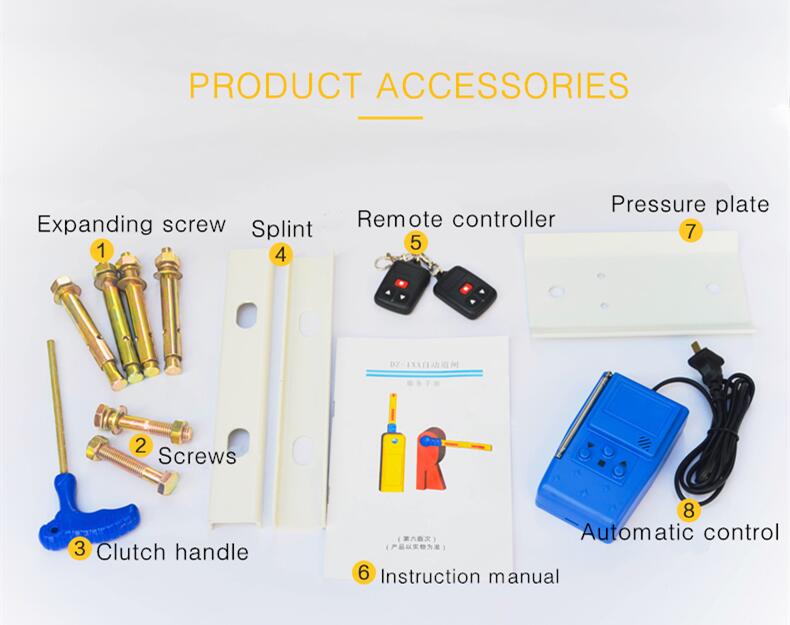

Pictures
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty
well.Our thinking is beyond the short-term.We are conceiving,
designing and creating high-tech solutions that are as advanced and
effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are
innovative,that will improve your performance and enhance your
skills;and that will make your business easier, increasing its
profitability.
Because our focus is on Quality with a capital Q.We just won’t
settle for less.
Communication with customers
1) Q: Connected power and press open/close button but car parking
barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button, car parking
barrier gate will move but even when it is at right position, the
motor still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but car parking barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, car parking barrier gate arm cannot
reach right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at
180° horizontal position if master rod and slave one are in the same
straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal position |
