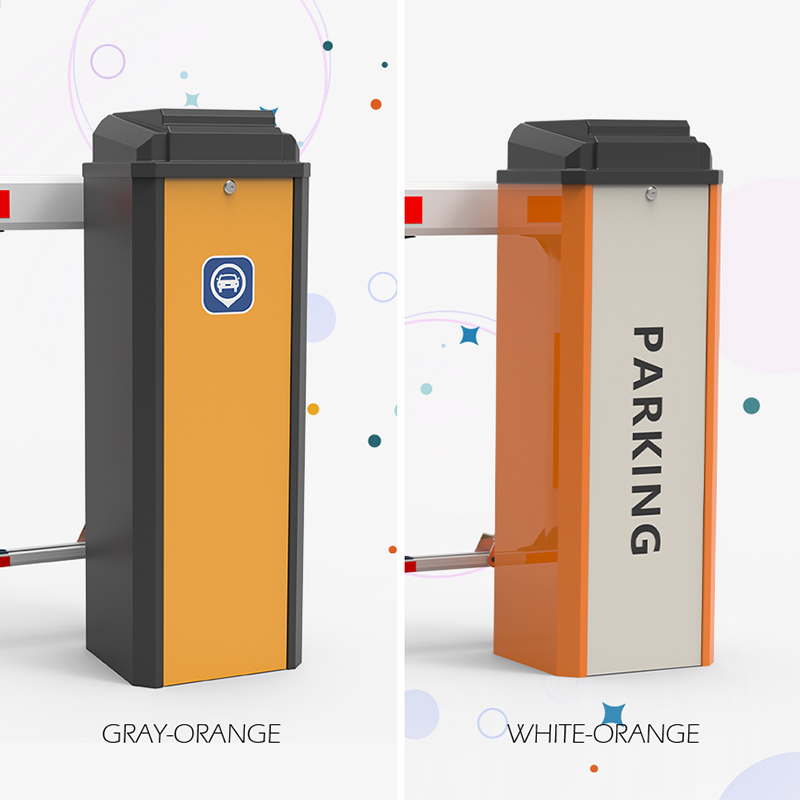

Remote Control Highway Traffic Barrier Gate 4th DC Brushless Car
Park Barriers
Introduction:
At the heart of the barrier is the combination of a DC motor and
its intelligent control mechanism. This combination, developed
especially for this application, represents a major technological
leap thanks to its flexible acceleration and deceleration and
independently adjustable opening and closing times. This further
optimizes the movement for a long service life and long
maintenance-free intervals. Hall sensors integrated into the motor
provide precise data on the position of the railing arm at any
given moment, and they also provide the control system with a means
of verifying optimum acceleration and braking characteristics. By
calculating the exact position of the boom, feedback is provided
directly at any position in the form of a potential-free signal.
This eliminates the need for mechanical limit switches that are
prone to wear.
Data sheet
| Max boom length | 6 meters |
| Opening time | 1.2s-4s, 3s-8s |
Power | 160W, 200W |
Housing Material | Powder-coated steel/ Aluminum |
Net weight (no boom) | 50KG |
MTBF | more than 5 million times |
Working temperature | -35°C~+65°C |
Protection grade | IP44 |
Driving unit | Brushless motor |
Advanced Features
* Boom rise automatically when power off, comply with the fire
safety requirements.
* No brake design, no longer to worry about the troubles from the
wear of the brake pads and a series of reliability problems.
* Can work with DC24V battery, can be combined with solar energy,
wind power, suitable places lack of AC power.
* Long time maintenance-free, greatly reducing maintenance costs.
* Direction exchange is easy.
* Free debugging during production and installation, greatly reduce
the maintenance and labor costs.
* No position sensor, each stop with the same accuracy. Pair using
is fully synchronized.
* During the course of the movement without any mechanical impact
or shock absorption, the highest reliability, the longest service
life.
Packing List:
| Title | Specification | Qty | Unit | Note |
| Barrier gate boom | | 1 | Piece | |
| Hexagon screw | M12*70 | 2 | piece | Fixing the boom |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
RFQ
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have,
Welcome email or call me! We will provide our best professional
service for you.
3.Q: First time import, how can i believe that you would send
product?
A: We are verified company by Everychina, to make transaction
success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our
shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
