Intelligent Parking Barrier Gate Low Noise High Speed Entrance DC
Brushless
Introduction
Shenzhen Wonsun Machinery & Electrical Technology Co., Ltd, was
founded in 2011, is the professional manufacturer of high-end
intelligent parking barrier gate, which included the product design
and development, production, sales and service. We are committed to
providing more stable, more practical and environmentally friendly
parking barrier gate for the customers who are in the field of the
access control system.
Parameter
Normal insulation resistance: the insulation resistance of the
motor is not less than 100MΩ;
Electric strength: between the conductive part of the motor and the
shell should be able to withstand 1760VAC/min without breakdown;
Motor temperature rise: ≤75K;
Motor noise: ≤55dB;
Work system: S1 work system;
Protection level: IP54;
Insulation class: Class B
Ambient temperature: -30°C--+80°C
Relative humidity: below 85%, non-condensing state
Storage environment requirements
Air temperature: -5°C--+35°C
Operation Speed: 1.5s- 6s
Max Straight /Telescopic boom Length: 6m
Motor No - load Speed: 1850r/min
Advantage

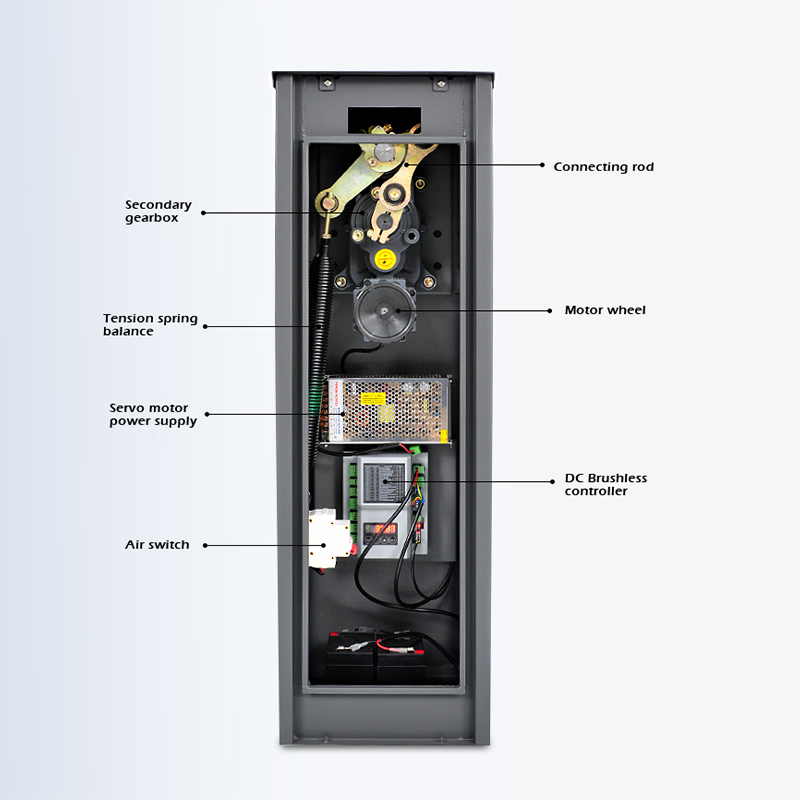

The 5TH Generation Brushless DC motor is composed of a motor main
body and a driver. It is a typical mechatronic product. It has the
characteristics of small size, low noise, high efficiency, wide
speed range, and small steady-state speed error. The Six-generation
gearbox dedicated for barrier gates, multiple speed ratios to
choose from, stable operation, customized gear transmission with
higher efficiency and high stability, is more and more praised by
the market.
Precautions
1. Follow the correct wiring method to avoid the motor not rotating
or burning.
2. The motor should not be overloaded and locked for a long time to
avoid excessive temperature rise.
3. Don't disassemble and assemble the assembled gear reducer
casually, so as to avoid the entry of sundries or the bad gear
meshing and make noise.
4. When connecting the output shaft of the motor and the gear
reducer to the load, it cannot be struck or squeezed by gravity, so
as to avoid internal deformation and misalignment, resulting in
serious noise or jamming.
5. The lead wire of the motor cannot be pulled with force to avoid
electric shock accidents.
6. Avoid touching the rotating parts when the motor is running to
avoid human injury; the motor casing should be well grounded.
Application

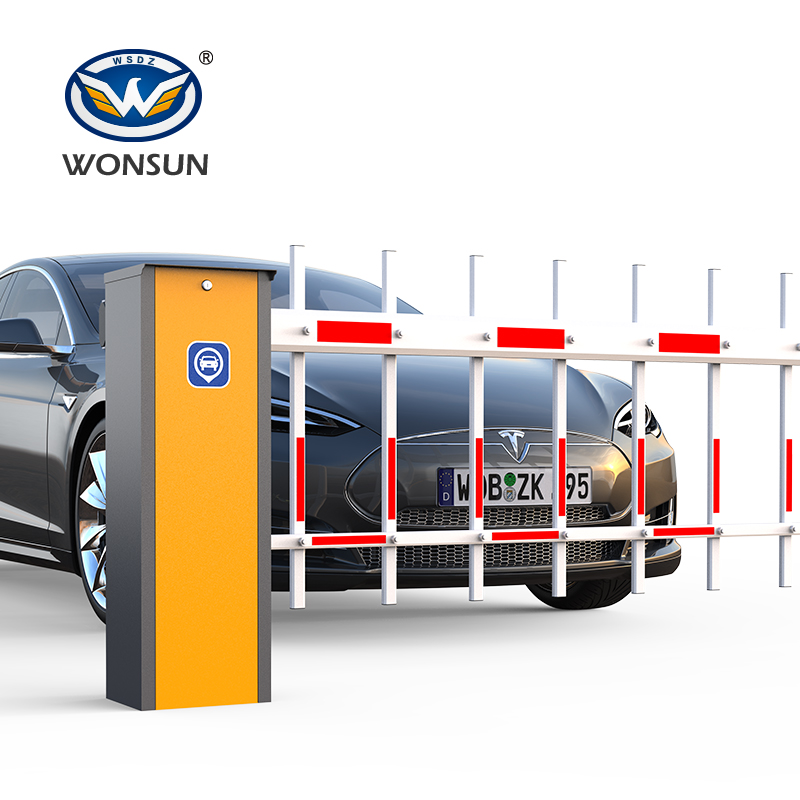

Our parking barrier gate, You can choose differernt motors, arms,
models and colors.
FAQ
Q: How long will your gate barrier working?
A: Gate barrier life span is 5-10 years.
Q: What should we do if there have problems during using?
A: My dear friend, We have 1 year guarantee. Any gate barrier
problems you have, Welcome email or call me! We will provide our
best professional service for you.
Q: First time import, how can i believe that you would send
product?
A: We are verified company by , to make transaction success.
Q:How to import your machines?
A: We will prepare gate barrier and shipment for you after payment; We will give you bill of loading after gate barrier depart our
shipping port; Our shipping agent will contact you when gate barrier arrival.
