Special Servo Motor 304 Stainless Steel Automatic Traffic Barriers
Introduction
This model adopts the newest servo motor, 304 stainless steel 2.0mm
thickless. It's suitbable for coastal areas, or secens that are
affected by the harsh environment, anti-corrosion, anti-rust, and
never fade.
Our company's second-generation servo barrier gate adopts
international leading technology integrated design, mold
manufacturing, compact structure, high precision, high consistency
and standardization, planetary reducer transmission, high
efficiency, long life, no oil leakage, no blockage, low noise and
other characteristics, the motor adopts 24V permanent magnet rare
earth synchronous servo motor, small size, low power consumption,
large torque, wide speed regulation, no heat, small penetration,
precise limit and other characteristics, using digital signal
processor (DSP ) As the control core, it can implement more complex
algorithms, realize networking and intelligence, (IPM) internal
integrated drive circuit can detect faults and display fault codes
to quickly solve fault problems. , Using solar charging
applications, suitable for unattended occasions such as railway
crossings without mains electricity, fire exits, gas stations, mine
entrances, etc., and fully realize automatic operation control.
Parameter
| PRODUCT PARAMETER |
| Working Temperature | -35℃~+65℃ | -35℃~+65℃ |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Open/close Speed | 0.9Sec-8Sec(Adjustable) | 0.6Sec-6Sec(Adjustable) |
| Rated Power | 200W | 400W |
| Driving Method | Servo motor | Servo motor |
| Humidity | ≤90% | ≤90% |
| Remote Control Distance | ≤100m(open, sunny) | ≤100m(open, sunny) |
| Protection Grade | at least IP55 | at least IP55 |
| Motor No - load Speed | 3000r/min | 3000r/min |
| Max Boom Length | 3m-6m | 2.5m |
Advantage
1. 3-year warranty and quality assurance;
2. The running speed is adjustable;
3. Customized design and OEM/ODM;
4. Special discount of our distributors or agents;
5. We are the barrier gate manufacturer, welcome to visit our
factory;
6. Supported by Sales Engineer's 12 hours severive.
Feature

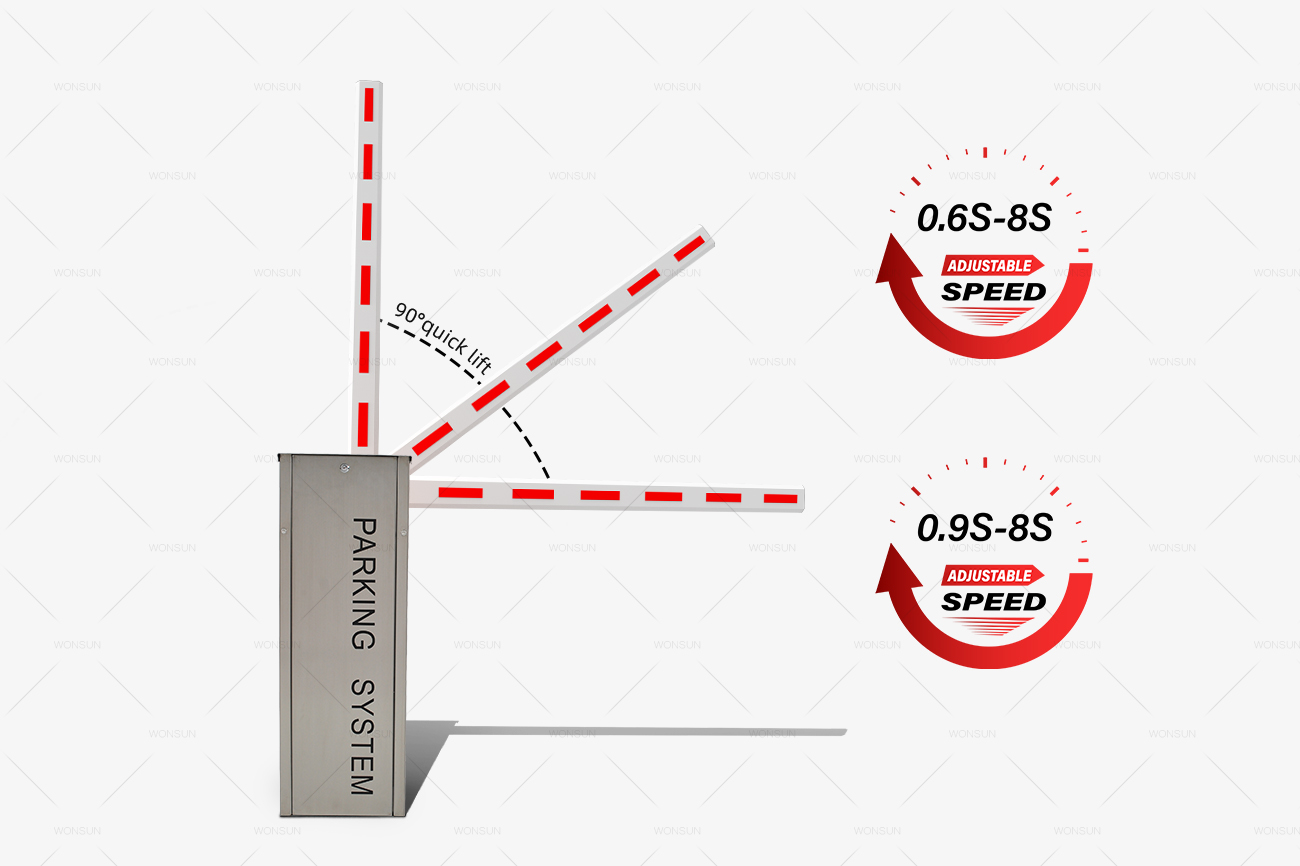

1. The Open and close speed is 0.6s-8s adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself
4. Wireless remote
5. Photocell port output
6. Loop detector anti-collision port output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close limit signal output
11. Counting (fleet) input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms
are required)
18. RS485 communication input
19. Automatic arm lift function (need to add power storage module).
Packaging and Shipping
Strong package to protect your goods intact and safe enough;
1. First bubble package;
2. Double layer honey comb board packaging;
3. Double-layer honey comb supporting carton cover;
4. cover honey comb package again;
5. Sealed with tape, finished the package;
6. Towards up carton mark.
