CE Approved High Speed Traffic Barrier Gate Parking Entrance Boom Barrier

Ask Lasest Price
Brand Name :	WONSUN
Model Number :	DZ-130 barrier gate
Certification :	CE
Price :	$279/Set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	3000 Set/Sets per Month
Delivery Time :	5-8 work day

Add to Cart

Product Details
Company Profile

CE Approved High Speed Traffic Barrier Gate Parking Entrance Boom Barrier

Wonsun CE Approved High Speed Traffic Barrier Gate DC Brushless Motor Parking Entrance Boom Barrier

Shenzhen WONSUN machinery and electrical technology co.,ltd, was founded in 2011, is the professional manufacturer of high-end intelligent parking barrier gate products, which included the product design and development, production, sales and service.We are committed to provide more stable, more practical and enviornmentally parking barrier gate fro the majority of the acccess control system customers.

Product Description

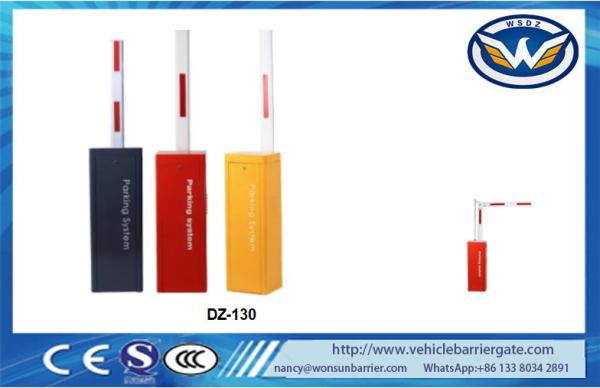

DZ-130 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 1.5mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control. Here introduce more details as below:

Product parameters:

Technical Data:

Name	Barrier gate, Parking barrier,Boom barrier
Model	DZ-130
Size	350270935mm
Rating Voltage	AC 220/110V ±10%, 50/60Hz
Motor Power	80w
Speed Option	1.5s-6s
Material	1.5mm galvanized plate or cold roll plate with epoxy paint
Weight	55 KG
Operation Testing	More than 5 million times
Arm Option	Straight arm, 1-6 m for option, 4580mm or 45100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence
Working Temperature	-45°C — +75°C
Remote Control Distance	50-100m
Package	Packing size: 1040352470mm, standard export carton case Inside with PE foam for collision protection
Application	Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center

Functions&Features:

1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)

Service for free:
1. One year free service is supplied(not including the arm and remote)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

FAQ

1-Can you install using loop detector or pressure sensor on it?
Yes,the standard advertising barrier gate have loop detector and pressure sensor.

2-How about the guarantee and after sale service?
Servo motor 2 years warranty, DC brushless motor 1 year warranty, We have well trained and professional sales & after-sale services who can speak fluent English language.

3-How long is the leading time?
For standard item
10-50 sets:5-10 working days
50-100 sets:10-15 working days
200-500 sets:15-20 working days
For special item, or need custom design package or logo, need 3-10 working days longer.

4-How about the payment terms?
T/T, western union,our company already joined the trade assurance,it will highly protect your order security.

5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
