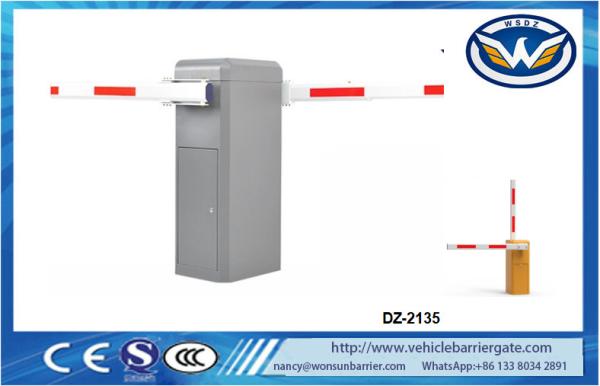

24VDC Motor Security Vehicle Barrier Heavy Duty Parking Barrier
Gate Two Motor Two Booms For Community
Product Overview:
Thank you for purchasing the 5th generation brushless motor barrier gate from WONSUN. This product
adopts the latest mold design technology, mold die-casting
manufacturing technology, brushless control
speed regulation technology, left and right interchangeable
quickly, no clutch design, more reliable quality,
more convenient to use, the movement adopts two-stage worm gear
drive, Three-curved connection rod
structure, and the arm works fast and stable. Easy maintenance and
long service life.
Car Park Barrier Specification:
| Working temperature(motor): | -30℃~+70℃ |
| Rated voltage: | DC24V |
| Running speed: | 2.5s-6s |
| Rated power: | 150W |
| Remote control distance: | ≤100M(in the open place) |
| Max length of arm: | 6M straight arm or telescopic arm |
Car Park Barrier Advantages:
1. Speed adjustable from 2.5s to 6s
2. Arm direction change left or right
3. New design of antiskid device to make sure the safety.
4. All components of machine core upgraded to precision cast steel.
5. Auto-delay when closing(adjustable)
6 RS485 or CAN network communication interface(no need to install
module)
Barrier arm balance adjustment
1,Please check and confirm arm status in horizon and vertical
position,then tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring
level of tightness of M8*140MM, make
sure the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two
springs simultaneously.
4,If arm open and close shake too much, Please check below picture.
Open arm shaking a lot means
spring is too tight, loose a little. Close arm
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
Parameters of Barrier Arm Type,Length and Operation Speed
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S |
| 4.5m>L≥3m | 3S |
| 90°folding arm | L≤5m | 5S |
| 180°folding arm | L≤5m | 5S |
| Two fence arm | 5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S |
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A 24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only need to
connect the switch signal output by the ground sensor.
Product Maintenance
10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running
3000 times.
10.4 Check the easily worn-out parts(like the spring,limit
switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case
like big object screening,battery
exhausting,extreme weathers.
Our Services
Service for free:
1. One year free service is supplied(not including the arm and
remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
