Speed Adjustable Automatic Boom Barrier Gate For Smart Car Parking Lots

Ask Lasest Price
Brand Name :	WONSUN
Model Number :	WSTP-115
Certification :	CE
Price :	$279/Set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	3000 Set/Sets per Month
Delivery Time :	5-8 work day

Add to Cart

Product Details
Company Profile

Speed Adjustable Automatic Boom Barrier Gate For Smart Car Parking Lots

5 Milloin Life Speed Adjustable 220V/110VAC Motor Automatic Boom Barrier Gate For Smart Car Parking Lots

Product description

Type	WSTP-115;WSTP-115B;WSTP-116; WSTP-117. WSTP-118, WSTP-119, WSTP-120,WSTP-121,WSTP-122,WSTP-123 ,WSTP-124,WSTP-125
Operation time	0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Arm Type	Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy
Material	Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading
Size	320280935 mm
Spring And Bearing	Heat Treatment: more durable, more than 5 million times through operation testing
Rating Power	120W
Rating Voltage	AC 220V/110V±10%, 50/60HZ
Remote Control Distance	Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size	1020375467mm , with seven layers carton case inside with air bubble film for protection
G.W	50 KG
Delivery	By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested
Payment	Sample: full payment Order: usually 40% advance deposite, balance before shipment
Advantages	1. Professional Manfacturer for more 8 years 2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team
Application	Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It can also be customized to beused together with any auto-pay ticketing parking or access control system

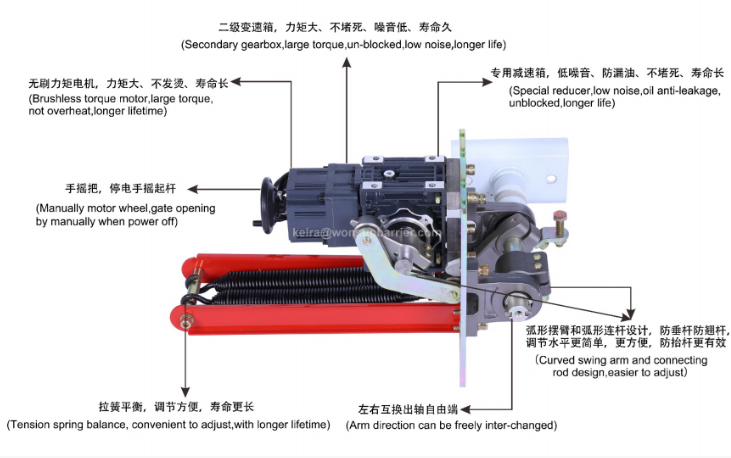

Barrier Gate Remote Control Functions and Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)

Specification:

1. Automatic humidity control
2. The fence-type motor adopts die-casting aluminum alloy, which is highly sealed and easy to dissipate heat
3. The motor cooling fan avoids the possibility of overheating
4. The barrier gate automatically reverses when encountering an obstacle
5. Realize automatic closing through the control panel menu setting
6. Barrier gates are used in conjunction with infrared photocells, loop detectors, card readers, ticket vending machines, manual switches (wire control), and traffic lights
7. RS485 communication module
8. Manual release device, operate the barrier gate when the power is off
9. Support external and internal vehicle loop detector (optional)

Motor Speed and Boom Type:

Boom type	Boom Length(m)	Opening time(S)	Height between boom and ground(M)
Straight boom	6m≥L>5m	6S	H=0.83M
	5m≥L>4.5m	6S
	4.5m≥L≥3m	6S
Folding boom 90 degree	5m≥L	6S
Folding boom 180 degree	5m≥L	6S
Fence Boom Two-level	5m≥L≥4m	6S	H=0.9M
Fence Boom Two-level	4m≥L≥3m	6S	H=0.9M
Fence boom Three-Level	5m≥L≥4m	6S	H=1.5M
Fence boom Three-Level	4m≥L≥3m	6S	H=1.5M

FAQ

1.Are you the manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen since 2007.

2.What is your MOQ?

For OED order,at least 30 sets.

3.What is your delivery time?

As for usual order,it is 3-5 days after received your payment with 50 sets order quanlity.

For OED order,it is 7-15 days after received your payment with 30 sets order quality.

4.Are threre any problems of your barrier gate?

As for now, don't receive any complaint of quality problems from our customer.

5.What is thr terms of payment?

30%-40% advance deposite,60%-70% balance beforefor shipment for large quantity.

6.What is your Warranty?

Our Warranty is 1 year.

Our Services

1.Professional staff answer your questions in English.

2. Customized design and OEM/ODM.

3.Supported by our professional engineers.

4.Special discount of our distributors or agents in this area.

5.Welcome you to vsit our factory.
