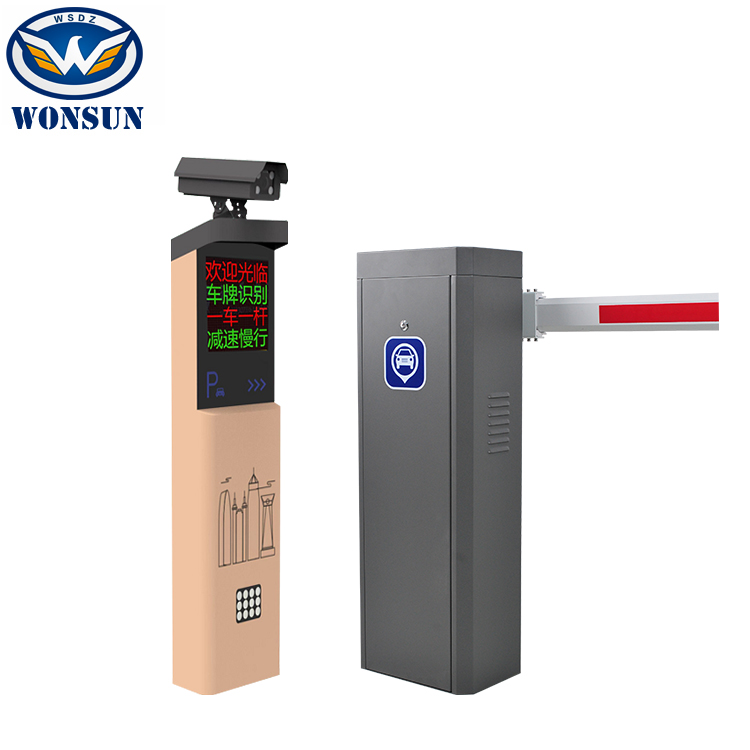

LPR Parking Management System With Traffice Barrier Gate License
Plate Recognition Security System
Barrier Gate Model Selection and Differences
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make
everything be easy
5. Fast finishing time for you to become more competitive at your
local market :3-5 days for small order.
Specifications
Model | P-613 |
Working Temperature | -30℃～+50℃ |
Voltage | 220V±10%, 50HZ |
Rated power | 65W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
License plate recognition rate | 99.8% (all-weather, typical license plate) |
Adaptation speed | 0-40KM/hour |
Effective Pixels | Starlight 300W 2304(H)x 1296(v) |
Image resolution | 3 million pixels (1920*1080) |
Communication with customers
1) Q: Connected power and press open/close button but traffic
barrier gate no action?
A | Reason | Solution |
1 | Fuse blown | Check fuse and power in controller |
2 | Battery of remote control powered off | Change a new one |
3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier
gate will move but even when it is at right position, the motor
still running and not stop?
A | Reason | Solution |
1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
2 | Main controller failure | Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical
position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach
right position (90° vertical & 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at
180° horizontal position if master rod and slave one are in the same
straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal
|
Advantages
1. Patented product, the chassis body is molded in one piece, with
an external camera and a multi-angle universal joint to adapt to
complex environments with large angles.
2. Outdoor high-brightness dual-color LED industrial-grade display
module, with a four-line four-character dual-color display.
3. Can set permissions for login accounts; can set the passing time
period for vehicles; supports various types of license plate
recognition.
4. Supports WeChat, Alipay, non-contact payment, central charging,
electronic coupons.
5. Flexible charging rules can be set to easily cope with various
charging scenarios.
6. Supports Internet cloud platform access, unmanned operation, and
supports multiple payment methods such as WeChat, Alipay, UnionPay,
ETC, etc. The four-row dual-color display screen supports free
setting of display information and TTS universal voice custom
broadcast
