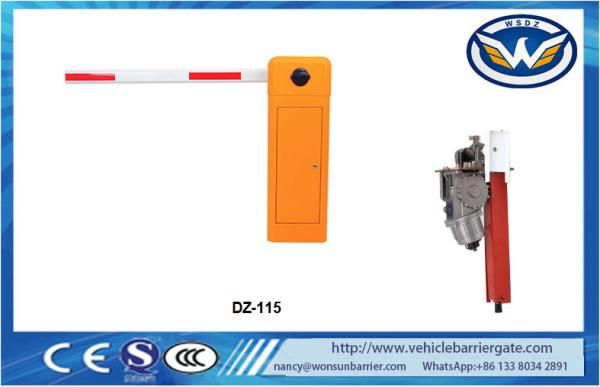

5 Million Life RS485 Traffic Light Interface 220V/110VAC Motor Vehicle Barrier Gate Safety Boom Barrier
Product description
| Type | WSTP-115;WSTP-115B;WSTP-116; WSTP-117. WSTP-118, WSTP-119, WSTP-120,WSTP-121,WSTP-122,WSTP-123 ,WSTP-124,WSTP-125 |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Arm Type | Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Size | 320*280*935 mm |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power | 120W |
| Rating Voltage | AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| G.W | 50 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment | Sample: full payment Order: usually 40% advance deposite, balance before shipment |
| Advantages | 1. Professional Manfacturer for more 8 years 2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application | Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It can also be customized to beused together with any auto-pay ticketing parking or access control system |
| Barrier Gate Remote Control Functions and Features |
| 1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional) |
Specification:
1. Automatic humidity control
2. The fence-type motor adopts die-casting aluminum alloy, which is highly sealed and easy to dissipate heat
3. The motor cooling fan avoids the possibility of overheating
4. The barrier gate automatically reverses when encountering an obstacle
5. Realize automatic closing through the control panel menu setting
6. Barrier gates are used in conjunction with infrared photocells, loop detectors, card readers, ticket vending machines, manual switches (wire control), and traffic lights
7. RS485 communication module
8. Manual release device, operate the barrier gate when the power is off
9. Support external and internal vehicle loop detector (optional)
Motor Speed and Boom Type:
| Boom type | Boom Length(m) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6m≥L>5m | 6S | H=0.83M |
| 5m≥L>4.5m | 6S |
| 4.5m≥L≥3m | 6S |
| Folding boom 90 degree | 5m≥L | 6S |
| Folding boom 180 degree | 5m≥L | 6S |
| Fence Boom Two-level | 5m≥L≥4m | 6S | H=0.9M |
| 4m≥L≥3m | 6S |
| Fence boom Three-Level | 5m≥L≥4m | 6S | H=1.5M |
| 4m≥L≥3m | 6S
|
| Our Services |
| Service for free:
1. One year free service is supplied(not including the arm) 2. Lifetime charged service is supplied 3. Technical service is supplied 4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements. 5. Technical support and aftersales service, it is a long term relatioship between us. 6. Price can be negotiable when you have big order quantity. Service for charging: 1. Broken by wrong installation 2. Broken by improper voltage 3. The surfaces of the barrier destroyed by wrong installation and usage 4. Overdue service items are out of our promise. |
| Boom Barrier Optional |
| 1. Straight boom arm length is 1-6 m, Speed time is 6S 2. Straight boom arm length is 1-4.5m. Speed time is 1.8s 3. Straight boom arm length is 1-3 m, Speed time is 1s 4. Straight boom arm length is 1-2.5m, Speed time is 0.6s |
| FAQ |
| Communication with customers 1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not. |
