    Vehicle Atomatic / Manual Boom Barrier Gates For Smart Parking System

    Ask Lasest Price
    Brand Name : WONSUN
    Model Number : WST-115
    Certification : CE, ISO, SGS
    Price : negotiation
    Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
    Supply Ability : 1000 Sets/Month
    Delivery Time : 3-7 working days after received your payment
    • Product Details
    • Company Profile

    Vehicle Atomatic / Manual Boom Barrier Gates For Smart Parking System

    Vehicle Atomatic/Manual Boom Barrier Gates For Smart Parking System


    Quick Detail:

    Name: Automatic boom barrier

    Colors: Orange, yellow, blue, red, customized

    Operating temperatures: -25 to 75°C

    Net weight: 42kg

    Packing size: 1,020*365*467mm, weight 50kg

    Usage: Highway, parking lot, community, hotel and factory

    Voltage:AC220V, AC110V

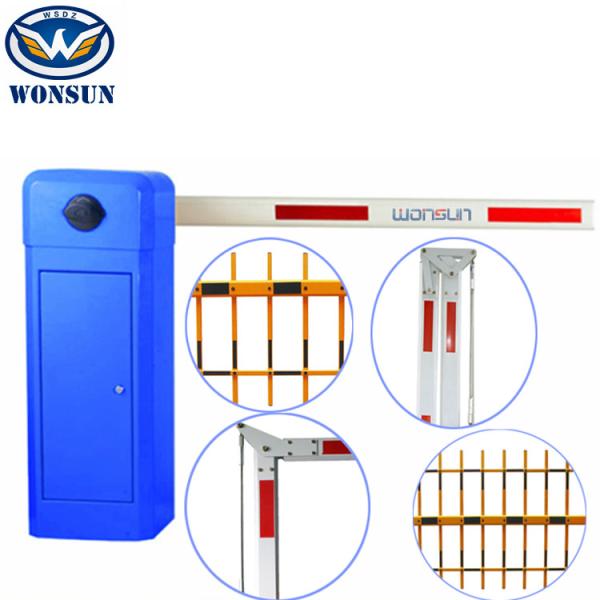

    Model Selection and Differences


    Model

    Boom Shape

    Max Boom Length

    Speed

    WST1151

    Straight boom

    6m

    6 seconds

    WST1152

    Straight boom

    4.5m

    3 seconds

    WST11521

    90 degree, Articulated boom

    5m

    6 seconds

    WST11522

    90 degree, Articulated boom

    3m

    3 seconds

    WST11561

    180 degree, Articulated boom

    5m

    6 seconds

    WST11562

    180 degree, Articulated boom

    3m

    3 seconds















    Functions & Features

    1) Manual release
    2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
    3) Die-casting aluminum alloy motor, precision and good at thermal radiating
    4) Motor cooling fan, solving the problem of heat-protection
    5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)

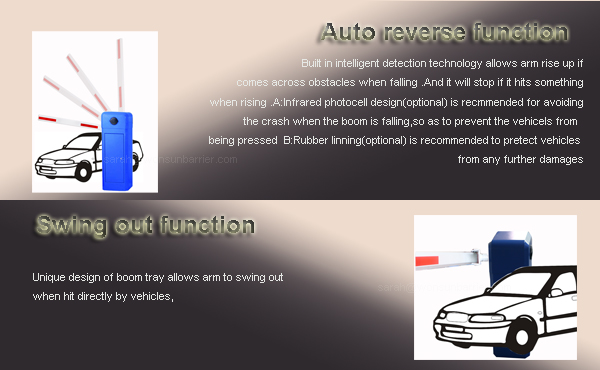

    6) Reversing on obstacle
    7) Auto-closing
    8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
    9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
    10) Traffic light interface
    11) Wire control (switch signal)/ Remote control (418MHZ)
    12) RS485 communication module (optional)

    Pictures



    Specifications

    Model

    WST1151

    Working Temperature

    -40℃~+75℃

    Voltage

    220V±10%, 110V±10%, 50/60HZ

    Rated power

    80W

    Relative humidity

    ≤90%

    Remote control distance

    ≥30m

    Net weight

    48kgs

    Speed

    1S,1.8S,3S, 6S

    Max boom length

    6 meters

    Motor Rotational speed

    1400rmp

    Protection Degree

    IP44


    With WONSUN, your job gets easier.


    Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
    Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
    Because our focus is on Quality with a capital Q.We just won’t settle for less.


    Communication with customers

    1) Q: Connected power and press open/close button but car parking barrier gate no action?

    A

    Reason

    Solution

    1

    Fuse blown

    Check fuse and power in controller

    2

    Battery of remote control powered off

    Change a new one

    3

    External protection circuit break or at protecting status

    Open the barrier door and click OPEN/CLOSE button on control box

    4

    Same frequency interference

    Check photocell and loop detector


    2) Q:Connected power and press open/close button, car parking barrier gate will move but even when it is at right position, the motor still running and not stop?

    A

    Reason

    Solution

    1

    Limit switch

    Adjust the horizontal/vertical limit switch to correct position

    2

    Main controller failure

    Change a new one


    3) Q: Motor running but car parking barrier gate arm no action?

    A

    Reason

    Solution

    1

    Barrier arm at 45° position where is hard to move

    Unlock clutch and manually rotate arm to horizontal or vertical position then try again

    2

    Tension of balancing spring not suitable

    Adjust spring exactly

    3

    Low working voltage

    Check the voltage and power


    4) Q: When opening/closing, car parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

    A.

    Reason

    Solution

    1

    Length adjustment of connecting rod not correct

    Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

    2

    Nuts on the limit switch loose

    Tighten the nuts when arm at 90° vertical and 180° horizontal position


    Our Car Park Barriers Packing List


    Packing list
    NameSpecificationsQuantityRemarks
    Machine coreGood in working1Main part
    Barrier armStraight, folding or fence arm1Optional
    Boom press board1Fixing the boom
    Self-tapoing screwST4*16Fixing the boom
    Self-tapoing screwst3*104Fixing the boom
    Supporting pole1Fupporting the boom
    Expanion boltM16*1504Fixing the case
    Hexagonal Inner ScrewM8*354fixing the case
    Clutch key1clutch device
    Case Key2for case and cover locking
    Balance springAccording to length of barrier arm1for sapre usage
    Remote emitterless than 30m is available1For remote control
    Remote conrol handlesless than 30m is available2For remote control
    Instructionin English1For reference
    RS485 interface1Optional
    Disc1Optional
    Communication Mould1Optional
    Cover head13 years without fading
    Expanion nutM84Fixing the supporting pole
