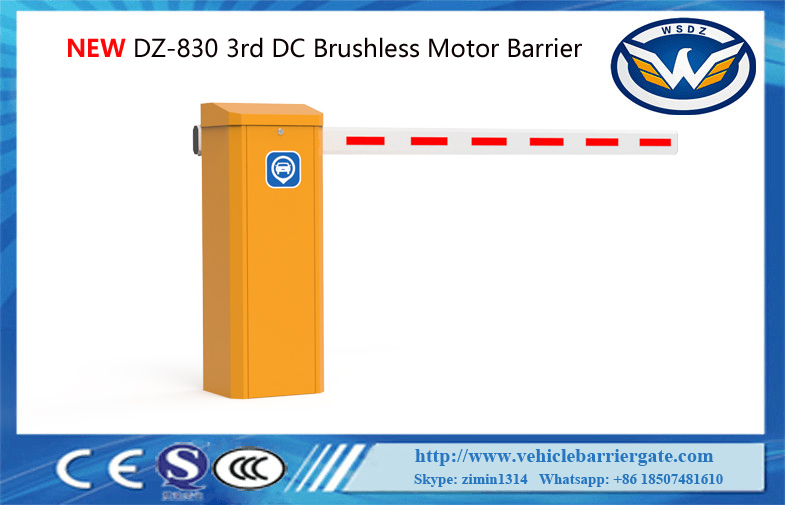

Traffic Light Hall Limit 24V DC Motor Speed Adjustale Automatic
Barrier Gate System
1. Quick details
1.1 Working temperature(motor): -35℃~+85℃
1.2 Rated voltage:DC24V
1.3 Running speed:1.5s-8s
1.4 Rated current:8.58A
1.5 Rated power:160W
1.6 IP Degree:IP44
1.7 Max length of arm:6M
2. Parameters of Barrier Arm Type,Length and Operation Speed
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S |
| 4.5m>L≥3m | 3S |
| 90°folding arm | L≤5m | 5S |
| 180°folding arm | L≤5m | 5S |
| Two fence arm | 5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S |
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
3. Automatic Barrier Gate Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation
is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
3.9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
4. Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the
anti-radiation output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only
need to connect the switch signal output by the ground sensor.
5. Parking system interface wire control interface: connect the
switch signal from the system to this interface
to control the barrier.
6. Starting limit and landing limit signal output: output COM/NO/NC
switch signal to the system to inform the
current state of the barrier.
7. RS485 or CAN communication interface: PC software can be used to
manage more than 15 barriers.
5 Function setting parameter table
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 1 | degree | |
| H00-07 | 1-30 | Close in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
| H00-09 | 0-90 | Delay closing adjustment | 0 | second | step size is 100；0 is not closing automatically, Other value will be closing automatically; This parameter is for the situation that there is no loop detector signals and non-automatic operation occasions |
| H00-10 | 10-50 | Self-check speed adjustment | 30 | | Corresponding PWM duty cycle 10%-50%, step size is 1 |
| H00-11 | 0-2 | Self-check mode | 0 | | 0:no operate automatically；1: operate automatically, eliminate after power off； 2:operate automatically,Power failure memory. 3.intelligent automatically operation. |
| H00-12 | 0-5 | Self-lock force adjustment | 0 | | 0:Invalid , 1or 2 valid |
| H00-13 | 1-20 | Motor deceleration time when paused | 5 | | The larger the setting, the longer the pause time will take |
| H00-14 | 0-1 | Bid-direction setting | 0 | | 0:Closing,1:opening |
| H00-15 | 0-2 | Energy saving closing arm direction | 0 | | 0:invalid
1:close arm valid(energy saving voltage is determined by 49 items )
2:open arm valid |
| H00-16 | 1-32 | RS485communication address | 1 | | Up to 32 slaves can be connected |
| H00-17 | 0-2 | RS485communication rate | 0 | | 0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again. |
| H00-18 | 0-2 | Whether to self-check when power on | 1 | | 0:no self-check,1:self-check；2:self-check with remote control; |
| H00-19 | 0-3 | self-check setting | 2 | | 0:Manually invalid,1:Keyboard SET button, 2:remote control valid,3,Keyboard SET button and remote control both valid |
