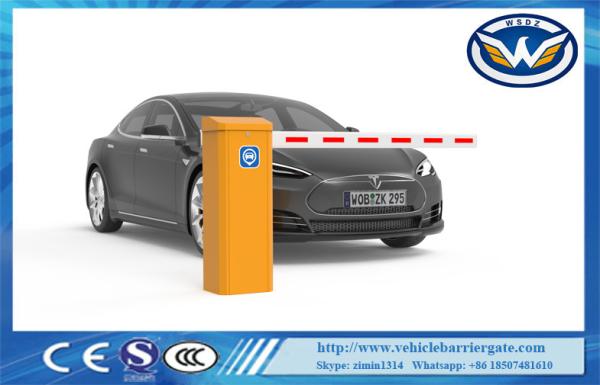

Residential Automatic Gates DC Brushless 6M Atomatic Barrier Gate
With Arm Auto Reverse
Automatic Barrier Gate Quick details:
1. Rated voltage:DC24V
2.Working temperature(motor): -30℃~+70℃
3. Running speed:1.5s-8s
4. Rated power:160W
5. Remote control distance:≤100M(in the open place)
6. Max length of arm:6M straight arm/telescopic arm
Parameters of Barrier Arm Type,Length and Operation Speed
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S |
| 4.5m>L≥3m | 3S |
| 90°folding arm | L≤4.5m | 5S |
| 180°folding arm | L≤4m | 5S |
| Two fence arm | 4.5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S |
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation
is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
Selection of spring
The spring is stretchable one and the specification is as follows:
Diameter 4.0MM green color
Diameter 4.5MM red color
Diameter 5.5MM blue color
Diameter 6.8MM yellow color
Diameter 7.0MM white color
Adjust the Position of Automatic Barrier Arm
To adjust the position of the arm (for example, after exerting
excessive force), please take the steps as below:
1.open the barrier gate door and remove the cover
2. Loosen the two fastening screws of the DZ-8 on the pendulum
shaft with an M12 Allen key, so that the barrier arm can be
repositioned by hand.
3. Calibrate the position of the barrier arm (horizontal position,
as shown in Figure 1).
4. Use a hexagon wrench to re-tighten the two fastening screws
Automatic Barrier Gate FAQ:
Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is
the professional manufacturer
of high-end intelligent parking barrier gate.
Q2.why should you buy from us not from other suppliers?
1. One year free service is supplied(not including the arm and
remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Q3.How about payment terms our company provide?
A: T/T
Q4.Which is your min order?
A: 1 piece
Q5.Model color size and craft for all barrier gates can be
customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your
company on product
