OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor

Ask Lasest Price
Brand Name :	WONSUN
Model Number :	DZ-130 vehicle barrier gate
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :	1000 Sets/Month
Delivery Time :	3-7 working days after received your payment

Add to Cart

Product Details
Company Profile

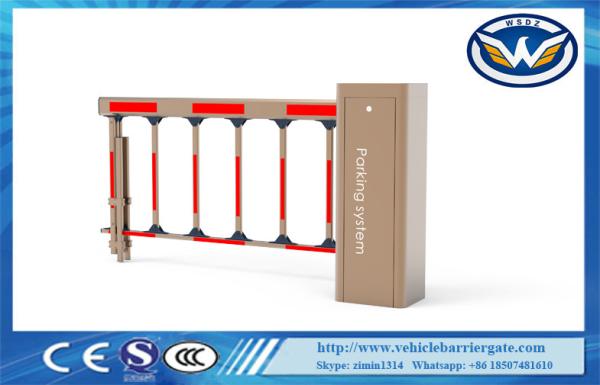

OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor

OEM Two Fence Boom Vehicle Barrier Gate With 24V DC brushless Motor 5 millions Operation Time

Vehicle barrier gate specifications:

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated power:140W
5 Relative humidity:≤90%
6 Remote control distance:≤100M(in the open place)
7 IP Degree:IP44
8 Max length of arm:6M straight arm

Vehicle Barrier Gate Features:

1 The running speed can be adjusted from 1.5s to 8s

2 Can be quickly interchanged

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

Function setting parameter table

Menu code	Parameter Name	Parameter scale	Default	Unit	Remark
H00-00	Open speed adjustment	25-95	40		Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01	Close speed adjustment	25-95	40		Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02	Open in place decelerate angle	5-40	35		The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-03	Close in place decelerate angle	5-40	35		The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-04	Open accelerate adjustment	1-20	1	ms	The smaller the number, the faster the speed
H00-05	Close accelerate adjustment	1-20	8	ms	The smaller the number, the faster the speed
H00-06	Open in place angle	1-30	1	degree	step size is 1

Arm length speed comparison table

Menu code Parameter Arm length	Open			Close
Menu code Parameter Arm length	H00-00	H00-02	H00-04	H00-01	H00-03	H00-05
Medium Octagonal arm 3m 1.5s(without rubber)	95	30	8	95	30	8
Medium Octagonal arm 3m 1.5s(with rubber)	95	25	8	95	25	8
Large Octagonal arm4.5m 3s(without rubber)	45	30	10	45	30	10
Large Octagonal arm 6m 5s(with rubber)	35	40	10	35	40	10
3m around arm 1.5s	95	25	8	95	25	8

(the parameter is based on the company’s arm)

Product Maintenance

10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running 3000 times.
10.4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.

Packing List

Name	Specification	Qty	Unit	Note
Hexagon screw	M12*70	2	Piece	Fixing the boom
Boom press board		1	piece
Mounting batten		2	piece	Fixing the case
Expansion bolt	M16*150	4	unit	Fixing the case
Case Key		2	unit
Remote controller		2	unit
Instruction		1	piece
