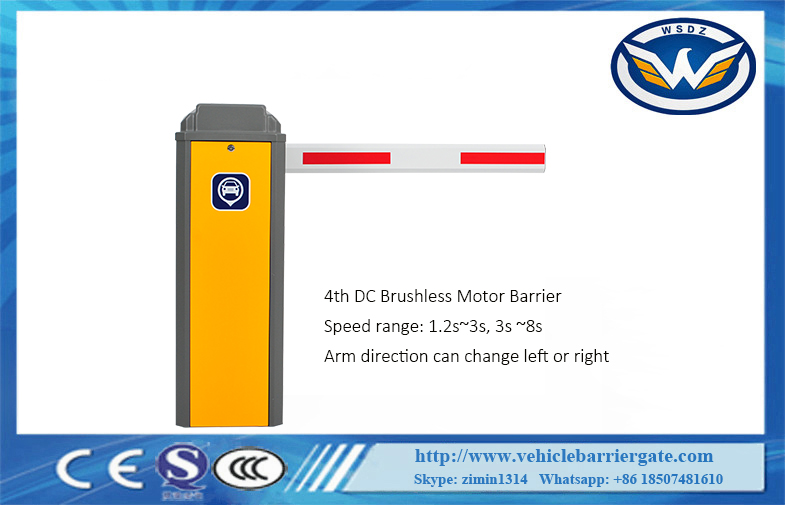

Anti-Crash OEM Manufacturer DC Brushless Motor 24V Power Security
Automatic Boom Barrier Gate
Automatic Boom Barrier Technical parameters:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.8s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 56.8N.m |
| Protection grade | IP54 |
Product description:
Thank you for purchasing the fourth generation brushless barrier
gate. This product is a typical mechatronics
product with the characteristics of small volume, low noise, high
efficiency, wide speed regulation and
small steady-state speed error.
Parameters of Barrier Arm Type,Length and Operation Speed:
| Arm Type | Arm length(L) | Open/ close speed | Center height H |
| Straight arm | 6m≤L＜5m | 5S | H=0.83m, height of arm center from ground |
| 5m≤L＜4.5m | 4S |
| 4.5m≤L＜3m | 3S |
| 3m≤L＜2.5m | 1.2S |
| 90°Folding arm | L≥5m | 5S |
| 180°Folding arm | L≥5m | 5S |
| Two fence arm | 4.5m≤L≤4m | 6S | H=0.9m,Height of arm center from ground |
| 4m≤L≤3m | 3S |
| Three fence arm | 4m≤L≤3.5m | 6S | H=1.5m,Height of arm center from ground |
Automatic Boom Barrier Features:
1 The running speed can be adjusted from 3s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
Spring selection table:
| Arm type | Arm length | Spring Selection |
| Spring type | Specification(diameter*length) |
| Straight arm | 6m | Tension spring | 4.5+4.5+4.5 |
| 5m | 4.5+4.5+4.5 |
| 4.5m | 4.5+4.5 |
| 4m | 4.5+4.5 |
| 3.5m | 4.5 |
| 3m | 4.5 |
| Two fence arm | 4.5m | 4.5+4.5+5.5 |
| 4m | 4.5+4.5+4.5 |
| 3.5m | 4.5+4.5+4.5 |
| 3m | 4.5+4.5 |
| 90 degree arm | 5m | 4.5+4.5+5.5 |
| 4.5m | 4.5+4.5+4.5 |
| 4m | 4.5+4.5+4.5 |
| 3.5m | 4.5+4.5 |
| 3m | 4.5+4.5 |
| Three fence arm | 4.5m | 5.5+5.5+5.5 |
| 4m | 5.5+5.5+5.5 |
| 3.5m | 4.5+4.5+5.5 |
| 3m | 4.5+4.5+4.5 |
(the parameter is based on the company’s arm)
Automatic Boom Barrier FAQ:
Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is
the professional manufacturer
of high-end intelligent parking barrier gate.
Q3.How about payment terms our company provide?
A: T/T
Q4.Which is your min order?
A: 1 piece
Q5.Model color size and craft for all barrier gates can be
customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your
company on product
