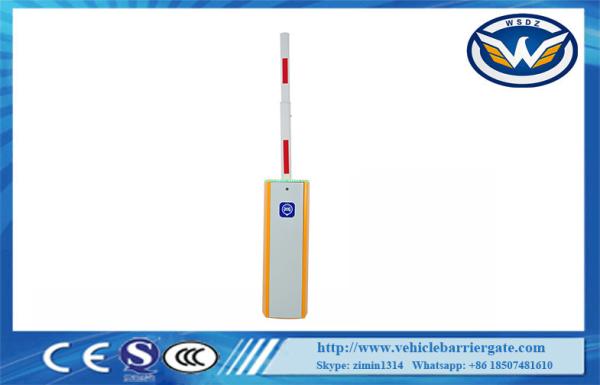

CE Access Control System Rfid DC Motor Driveway Barrier Gate With
6m Telescopic Arm
Driveway Barrier Parameters:
| Power supply | 24V DC |
| Open/close speed | 2.5s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Protection grade | IP54 |
Rated speed | 1400rpm |
Relative humidity | ≥85% |
Remote control distance | ≤100M(in the open place) |
Rated current | 9.5A |
Driveway Barrier Gate Features:
1 The running speed can be adjusted from 2.5s to 8s
2 Can be quickly interchanged
3 Loop detector connector is available.
4 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
5 Connector for traffic light(AC220V,power less than 40W)
6 Offering dry contact signal for car parking system(COM,NC,NO)
7 Auto-delay when closing(adjustable)
8 RS485 or CAN network communication interface(no need to install
module)
9 Counting interface
Function setting description:
When setting the function, please press the menu button on the
control panel. The Nixie tube displays H00-00
or H00-other numbers. We correspond to the function parameter table
code to enter the required function
parameter setting. For example, H00-00 is the UP ARM speed
adjustment, and then press the confirm button
Enter the parameter setting, the number will be displayed on the
digital tube, then press the up or down key
to set the required UP ARM speed number, and then press the confirm
button to complete the ARM-up speed
setting.The other function settings are the same as the example
settings.
Function setting paramter table:
Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 1 | degree | step size is 1, when big than 11, will automatically check one side |
| H00-07 | 1-30 | Close in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
| H00-09 | 0-90 | Delay closing adjustment | 0 | second | step size is 100；0 is not closing automatically,Other value will be closing automatically; This parameter is for the situation that there is no loop detector signals and non-automatic operation occasions |
| H00-10 | 10-50 | Self-check speed adjustment | 30 | | Corresponding PWM duty cycle 10%-50%, step size is 1 |
| H00-11 | 0-2 | Self-check mode | 0 | | 0:no operate automatically； 1:operate automatically, eliminate after power off； 2:operate automatically,Power failure memory. 3.intelligent automatically operation. |
| H00-12 | 0-5 | Self-lock force adjustment | 0 | | 0:Invalid , 1or 2 valid |
Product Maintenance:
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000
times.
4 Check the easily worn-out parts(like the spring,limit
switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case
like big object screening,battery exhausting,
extreme weathers.
Packing List:
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
