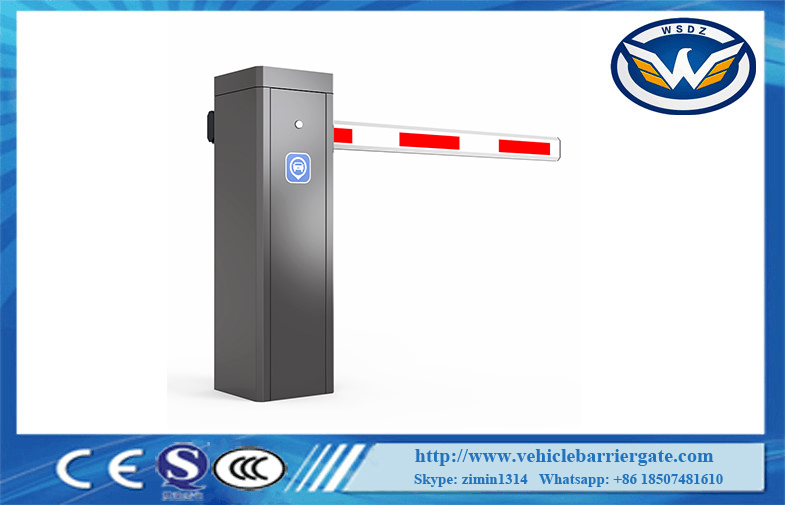

Non-spring DC Brushless Motor 24V Barrier Gate Automatic Boom
Barrier Gate With 6m Arm
Vehicle Barrier Parameters:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.5s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 59.6N.m |
| Protection grade | IP54 |
Rated speed | 1400rpm |
Relative humidity | ≥85% |
Remote control distance | ≤100M(in the open place) |
Rated current | 9.5A |
Function setting parameter table:
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | | Corresponding PWM duty
cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 40 | | Corresponding PWM duty cycle
25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the
less likely it is to shake the arm
when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the
less likely it is to shake the arm
when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the
faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the
faster the speed
|
Vehicle Barrier Gate Features:
1 The running speed can be adjusted from 2.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Anti-collision alarm device
7 No spring design
8. Anti-skid design, more safe.
Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A 24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only need to
connect the switch signal output by the ground sensor.
5. Parking system interface wire control interface: connect the
switch signal from the system to this interface to control the
barrier.
6. Starting limit and landing limit signal output: output COM/NO/NC
switch signal to the system to inform the current state of the
barrier.
7. RS485 or CAN communication interface: PC software can be used to
manage more than 15 barriers.
Service Items
1 One year’s free servicing is supplied(not including arm and
remote);
2 Lifetime charged servicing is offered;
3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
1 Broken by the wrong installation.
2 Broken by improper voltage.
3 The surfaces of the system destroyed by wrong installation or
use.
4 Broken by natural disaster.
5 Overdue.
6 Servicing items out of our promises.
