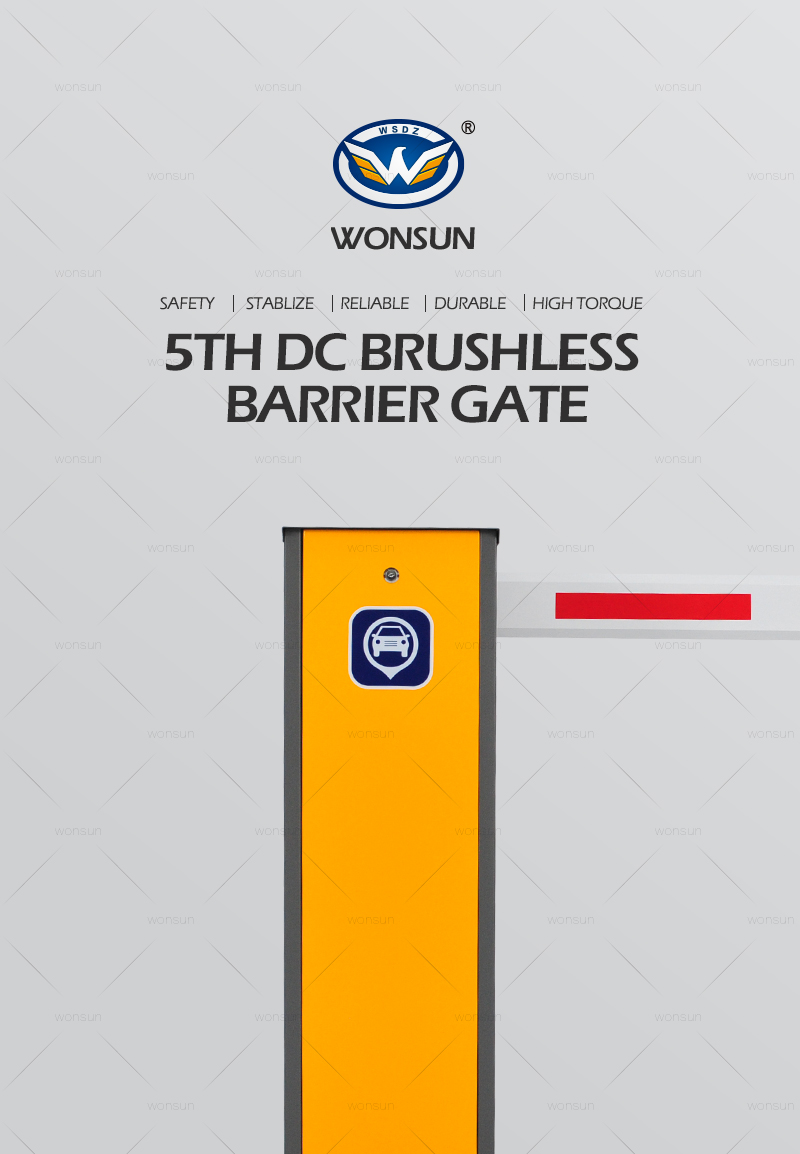

Speed Adjustable Intelligent Barrier Parking Lot Barrier Gate 24VDC
Brushless Motor Anti-crash
Product overviw:
The brushless DC motor is composed of a motor main body and a
driver. It is a typical mechatronic
product. It has the characteristics of small size, low noise, high
efficiency, wide speed range, and
small steady-state speed error. The fifth-generation gearbox
dedicated for barrier gates, multiple
speed ratios to choose from, stable operation, customized gear
transmission with higher efficiency
and high stability, is more and more praised by the market.
Automatic Barrier Parameters:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.5s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 59.6N.m |
| Protection grade | IP54 |
Rated speed | 1400rpm |
Relative humidity | ≥85% |
Remote control distance | ≤100M(in the open place) |
Rated current | 9.5A |
Vehicle Barrier Gate Features:
1 The running speed can be adjusted from 2.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
5th BLDC motor general technical conditions:
1. Normal insulation resistance: the insulation resistance of the
motor is not less than
100MΩ;
2. Electric strength: between the conductive part of the motor and
the shell should be
able to withstand 1760VAC/min without breakdown;
3. Motor temperature rise: ≤75K;
4. Motor noise: ≤55dB;
5. Work system: S1 work system;
6. Protection level: IP54;
Insulation class: Class A
Precautions:
1. Follow the correct wiring method to avoid the motor not rotating
or burning.
2. The motor should not be overloaded and locked for a long time to
avoid
excessive temperature rise.
3. Don't disassemble and assemble the assembled gear reducer
casually, so as to
avoid the entry of sundries or the bad gear meshing and make noise.
4. When connecting the output shaft of the motor and the gear
reducer to the load,
it cannot be struck or squeezed by gravity, so as to avoid internal
deformation and
misalignment, resulting in serious noise or jamming.
5. The lead wire of the motor cannot be pulled with force to avoid
electric shock
accidents.
6. Avoid touching the rotating parts when the motor is running to
avoid human
injury; the motor casing should be well grounded.
Service Items
Motor is one year warraty, remote and arm do not have warranty.
