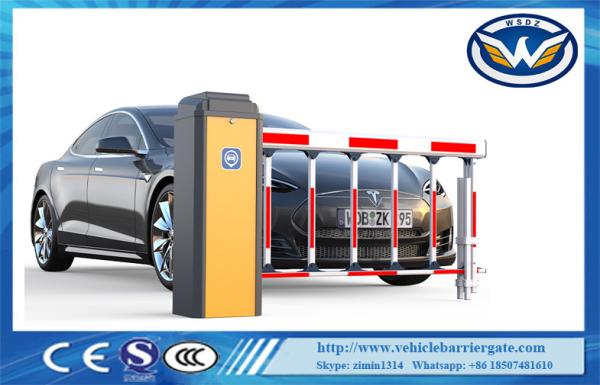

Speed Adjustable BLDC Barrier Gate 24V DC RFID Remote Automatic
Boom Barrier Gate
Application:
Airport, school, shopping mall, comunity, hospital, parking lot.
Automatic Boom technical parameters:
| Working temperature | -35~+70℃ |
| Power supply | 24V DC |
| Open/close speed | 1.2s to 3s,3s to 8s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 56.8N.m |
Automatic Boom Barrier Gate Features:
1 The running speed can be adjusted from 3s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
Function setting parameter table
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 35 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 35 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 1 | degree | step size is 1, when big than 11, will automatically check one side |
| H00-07 | 1-30 | Close in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
Selection of spring:
The spring is stretchable one and
the specification is as follows:
Diameter 4.0MM green color
Diameter 4.5MM red color
Diameter 5.5MM blue color
Diameter 6.8MM yellow color
Diameter 7.0MM white color
Electrical installation, wiring diagram:
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only need
to connect the switch signal output by the ground sensor.
5. Parking system interface wire control interface: connect the
switch signal from the system to this interface to
control the barrier.
6. Starting limit and landing limit signal output: output COM/NO/NC
switch signal to the system to inform the
current state of the barrier.
7. RS485 or CAN communication interface: PC software can be used to
manage more than 15 barriers.
Automatic Barrier arm balance adjustment:
1,Please check and confirm arm status in horizon and vertical
position,then tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring
level of tightness of M8*140MM, make sure
the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two
springs simultaneously.
4,If arm open and close shake too much, Please check below picture.
Open arm shaking a lot means spring
is too tight, loose a little. Close arm shaking too much means
spring too lose, repeat tighten a little spring.
