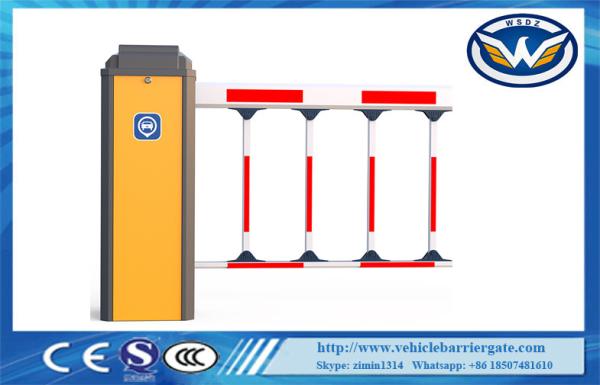

24V BLDC Barrier Gate Hall Limit 6s Remote Automatic Car Park
Barriers With Two Fence Arm
Application:
Airport, shopping mall, comunity, hospital, parking lot.
Car Park Barriers technical parameters:
1. Working temperature:-35~+70℃
2. Power supply:24V DC
3. Open/close speed:1.2s to 3s,3s to 8s
4. Rated power:150W
5. Driving method: 4th DC brushless motor
Car Park Barriers Features:
1 Infrared photocells connector is available
2 Loop detector connector is available.
3 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
4 Connector for traffic light(AC220V,power less than 40W)
5 Offering dry contact signal for car parking system(COM,NC,NO)
6 Auto-delay when closing(adjustable)
7 RS485 or CAN network communication interface(no need to install
module)
8 Counting interface
9 24V backup battery interface(Can be charged by using solar
energy)( optional)
Function setting parameter table
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 35 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 35 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 1 | degree | step size is 1, when big than 11, will automatically check one side |
| H00-07 | 1-30 | Close in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
| H00-09 | 0-90 | Delay closing adjustment | 0 | second | step size is 100；0 is not closing automatically,Other value will be closing automatically; This parameter is for the situation that there is no loop detector signals and non-automatic operation occasions |
| H00-10 | 10-50 | Self-check speed adjustment | 30 | | Corresponding PWM duty cycle 10%-50%, step size is 1 |
| H00-11 | 0-2 | Self-check mode | 0 | | 0:no operate automatically；1: operate automatically, eliminate after power off；2:operate automatically, Power failure memory.3.intelligent automatically operation. |
| H00-12 | 0-5 | Self-lock force adjustment | 0 | | 0:Invalid , 1or 2 valid |
| H00-13 | 1-20 | Motor deceleration time when paused | 5 | | The larger the setting, the longer the pause time will take |
| H00-14 | 0-1 | Bid-direction setting | 0 | | 0:Closing,1:opening |
Electrical installation, wiring diagram:
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only need
to connect the switch signal output by the ground sensor.
