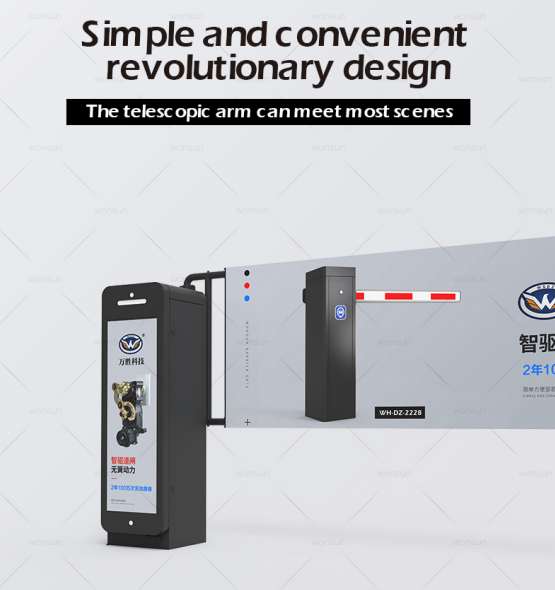

Advertising Barrier Gate 24V BLDC Brushless Motor Advertising
Vehicle Barrier Gate
Our Advantages:
1. 3second to 8 second open/close time adjustable;
2. Advertising DC brushless motor & 5 million MCBF;
3. 5tension spring balance makes is heavy duty and more durable;
4.Led lights with time swtich ,set a time for light on as you
require;
5. Simplified design, easy installation and maintenance reduces your
labor cost;
Technical Parameters:
1. Working temperature(motor): -30℃~+60℃
2. Rated Supply:24/100/240VAC,50/60Hz
3. Running speed:1.2sec to 3Sec(adjustable)
4. Rated power:160W
5. Driving Method:Servo motor
6. Humidity:≥85%
7. Remote control distance:≤100M(open,sunny weather)
The parameter for selecting the spring:
| Arm type | Length of arm | Spring |
| Type | Dimension(diameter*length) |
| 100*45straight arm | 6m | Tension spring | 4.5+5.5 |
| 5m | 4.0+5.5 |
| 4.5m | 4.5+4.5 |
| 4m | 4.5+4.0 |
| 3.5m | 4.5 |
| 3m | 4.5 |
| 80*45straight arm | 6m | 5.5+4.0 |
| 5m | 5.5+4.0 |
| 4.5m | 4.5+4.5 |
| 4m | 4.5+4.0 |
| 3.5m | 4.5 |
| 3m | 4.0 |
| Two fence arm | 4.5m | 5.5+5.5 |
| 4m | 4.5+5.5 |
| 3.5m | 4.5+4.5 |
| 3m | 4.5+4.5 |
| 90 degree arm | 5m | 5.5+4.5 |
| 4.5m | 5.5+4.5 |
| 4m | 4.5+4.5 |
| 3.5m | 4.5+4.5 |
| 3m | 4.5+4.0 |
| 3 fence arm | 4.5m | 5.5+6.8 |
| 4m | 5.5+5.5 |
| 3.5m | 4.5+5.5 |
| 3m | 4.5+4.5 |
| Remark:6.8yellow,5.5blue,4.5red,4.0 green |
(the parameter is based on the company’s arm)
Barrier arm balance adjustment:
1,Please check and confirm arm status in horizon and vertical
position,then tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring
level of tightness of M8*140MM,
make sure the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two
springs simultaneously.
4,If arm open and close shake too much, Please check below picture.
Open arm shaking a lot
means spring is too tight, loose a little. Close arm shaking too
much means spring too lose, repeat tighten a little spring.
Diagram of 3rd DC brushless mechanism:
Installation direction definition:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for
larger order
Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.
Q: Do you provide free samples ?
A: No,we don't provide free samples. The MOQ is 1pcs.
