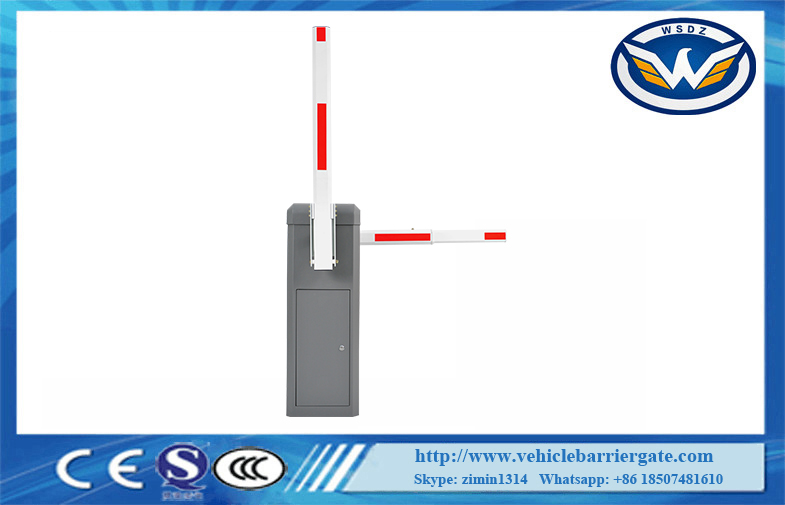

2 Motors Automatic Car Park Barrier RS485 24VDC Brushless Motor
With Two Barrier Arm
Car Park Barrier Specification:
Working temperature(motor): | -30℃~+70℃ |
Rated voltage: | DC24V |
Running speed: | 2.5s-6s |
Rated power: | 150W |
Remote control distance: | ≤100M(in the open place) |
Max length of arm: | 6M straight arm or telescopic arm |
Car Park Barrier Advantages:
1. Speed adjustable from 2.5s to 6s
2. Arm direction change left or right
3. New design of antiskid device to make sure the safety.
4. All components of machine core upgraded to precision cast steel.
5. Auto-delay when closing(adjustable)
6 RS485 or CAN network communication interface(no need to install
module)
Barrier arm balance adjustment
1,Please check and confirm arm status in horizon and vertical
position,then tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring
level of tightness of M8*140MM, make
sure the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two
springs simultaneously.
4,If arm open and close shake too much, Please check below picture.
Open arm shaking a lot means
spring is too tight, loose a little. Close arm
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
Function setting parameter table
| Menu code | Parameter Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 40 | | Corresponding PWM duty cycle 25%-95%, step size is 1 |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | | The larger the angle value, the less likely it is to shake the arm when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire
to work.
2. Traffic light interface: 2A 24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared
anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When
using an external ground sensor, you only need to
connect the switch signal output by the ground sensor.
Product Maintenance
10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running
3000 times.
10.4 Check the easily worn-out parts(like the spring,limit
switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case
like big object screening,battery
exhausting,extreme weathers.
