New Design Advertising Barrier Gate 24V DC Brushless Motor
Advertising Boom Barriers
Our Advantages:
1. 3second to 8 second open/close time adjustable;
2. Advertising DC brushless motor & 5 million MCBF;
3. 5tension spring balance makes is heavy duty and more durable;
4.Led lights with time swtich ,set a time for light on as you
require;
5. Simplified design, easy installation and maintenance reduces your
labor cost;
8.1year standard warranty, excellent after-sales service;
9. 24h*7d at your service to give you best support;
Technical Parameters:
1. Working temperature(motor): -30℃~+60℃
2. Rated Supply:24/100/240VAC,50/60Hz
3. Running speed:1.2sec to 3Sec(adjustable)
4. Rated power:160W
5. Driving Method:Servo motor
6. Humidity:≥85%
7. Remote control distance:≤100M(open,sunny weather)
8. IP Degree:IP54
9. Motor No-load Speed:1400r/min
10. Max Boom Length:3M-4.5M
11. Deceleration ratio:1:50
Equipment installation:

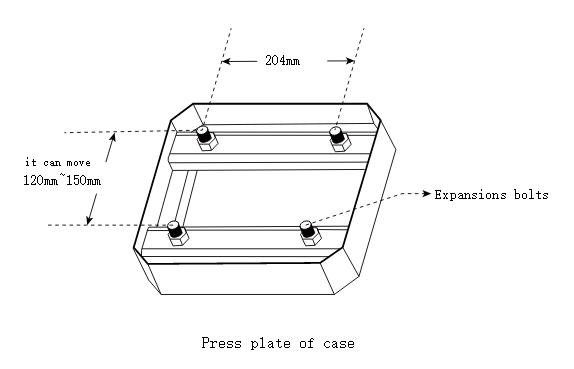

1. Please select the correct type of barrier gate according to the
specifications of the pace,and then fix the
barrier cabinet with expansion bolts.
After determined the position,the barrier gate foundation should be
done according to the site conditions,
and also make the cast-in-place basement for the non-concrete
ground.
Select and commission spring:
The barrier gate is well-adjusted before delivery.For further
adjustment,please follow below instructions.
The spring is stretchable one and the specification is as follows:
Diameter 4.0MM green color
Diameter 4.5MM red color
Diameter 5.5MM blue color
Diameter 6.8MM yellow color
Diameter 7.0MM white color
The spring length is subject to the actual product. Design changes
will be notified separately.
Function setting parameter table
| Menu code | Parameter
Scale | Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 35 | | Corresponding PWM duty cycle 25%-95%,
step size is 1 |
| H00-01 | 25-95 | Close speed adjustment | 35 | | Corresponding PWM duty cycle 25%-95%,
step size is 1 |
| H00-02 | 5-40 | Open in place decelerate
angle | 35 | | The larger the angle value, the less likely
it is to shake the arm when it is in place. |
| H00-03 | 5-40 | Close in place decelerate
angle | 35 | | The larger the angle value, the less likely
it is to shake the arm when it is in place. |
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
Adjust the Position of Barrier Arm

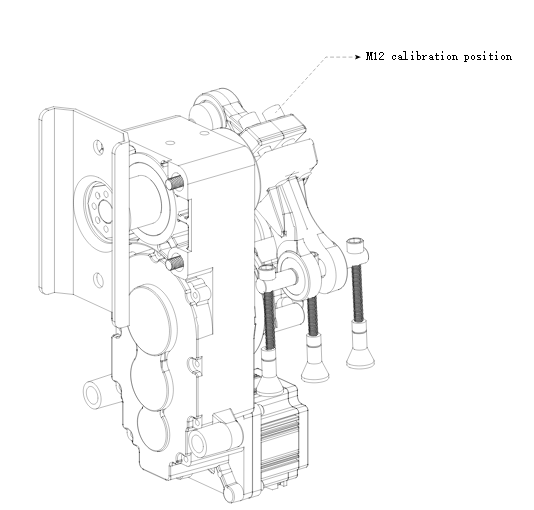

To adjust the position of the arm (for example, after exerting
excessive force), please take the steps as below:
- open the barrier gate door and remove the cover
- Loosen the two fastening screws of the DZ-8 on the pendulum shaft
with an M12 Allen key, so that the barrier arm can be repositioned
by hand.
- Calibrate the position of the barrier arm (horizontal position, as
shown in Figure 1).
- Use a hexagon wrench to re-tighten the two fastening screws
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for
larger order
Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.
Q: Do you provide free samples ?
A: No,we don't provide free samples. The MOQ is 1pcs.
