Fence Arm Automatic Barrier Gate Automatic Parking Gate Barrier
With Loop Detector
If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Wechat: Keira_Xia
1.Technical parameters
- Working temperature(motor): -35℃~+60℃
- Rated voltage:DC24V
- Running speed:1.5s-8s
- Rated current:8.58A
- Rated power:160W
2. Electrical installation, wiring diagram
- The internal wiring of this machine has been completed when it
leaves the factory, please do not change it,
- just connect the 220V power supply and the protective ground wire
to work.
- Traffic light interface: 2A24V voltage traffic light use.
- Infrared anti-smashing interface: external infrared anti-radiation
device, and the switch signal of the anti-radiation output can be
connected.
- Ground sense interface: support external ground sense. When using
an external ground sensor, you only need to connect the switch
signal output by the ground sensor.
- Parking system interface wire control interface: connect the switch
signal from the system to this interface to control the barrier.
- Starting limit and landing limit signal output: output COM/NO/NC
switch signal to the system to inform the current state of the
barrier.
- RS485 or CAN communication interface: PC software can be used to
manage more than 15 barriers.
3. Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
3.4 Loop detector connector is available.
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Auto-delay when closing(adjustable)
3.8 24V backup battery interface(Can be charged by using solar
energy)( optional)
Parameters of Barrier Arm Type,Length and Operation Speed
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S |
| 4.5m>L≥3m | 3S |
| 90°folding arm | L≤5m | 5S |
| 180°folding arm | L≤5m | 5S |
| Two fence arm | 5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S |
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
Arm direction definition:
Equipment installation

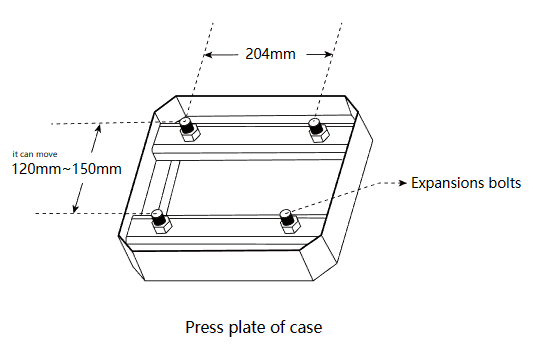

Please select the correct type of barrier gate according to the
specifications of the pace,and then fix the barrier
cabinet with expansion bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be
done according to the site conditions,and also
make the cast-in-place basement for the non-concrete ground.
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
Wonsun is a professional manufaturer for barrier gate, boom
barrier, sliding gate motor. If any interest, please contact me
freely.
