    Straight Boom Parking Barrier Gate Frared Sensor Signal Anti Smashing Interface

    Ask Lasest Price
    Brand Name : WONSUN
    Model Number : DZ-130
    Certification : CE
    Price : negotiation
    Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
    Supply Ability : 1000 Sets/Month
    Delivery Time : 3-7 working days after received your payment
    • Product Details
    • Company Profile

    Straight Boom Parking Barrier Gate Frared Sensor Signal Anti Smashing Interface

    NEWEST Automatic DC24V Parking Barrier Gate Vehicle Barrier Gates


    Shenzhen WONSUN machinery and electrical technology co.,ltd, was founded in 2011, is the professional manufacturer of high-end intelligent parking barrier gate products, which included the product design and development, production, sales and service.We are committed to provide more stable, more practical and enviornmentally parking barrier gate fro the majority of the acccess control system customers.


    Quick details:


    Name:Automatic barrier gate
    Speed:1.2s to 6s
    Feature:Straight boom
    Rated Power:140W
    Certificate:CE,
    Net Weight:48KG
    Voltage:DC24V


    Functions:


    1.The operation speed can be adjusted(1.2sec to 6sec)

    2.Arm direction can be quickly changed.

    3.Barrier gate up&down signal relay switch output

    4.R&G traffic light relay switch signal output.

    5.External loop detector signal anti-smashing interface.

    6.Infrared sensor signal anti-smashing interface.

    7.Count mode interface.

    8.Arm swing out function, when the vehicle hit the barrier gate, the arm can be swing out to avoid further damage.

    9.High-sensitivity arm auto reverse function(intensity can be adjusted)

    10.Parking system terface.


    Rated Power140W
    Power SupplyDC24V
    Frequency50HZ / 60HZ
    Working Temperature-35°to 85°
    Related Humidity≤90%
    Remote Control Distance<100m
    Arm Speed1.2 sec to 6 sec(Depending on arm length)
    IP GradeIP44

    Features

    • Mechanical and electrical integration:quickly assembly,easy maintenance.
    • Molding production:highprecision,fast efficiency and guaranteed quality.

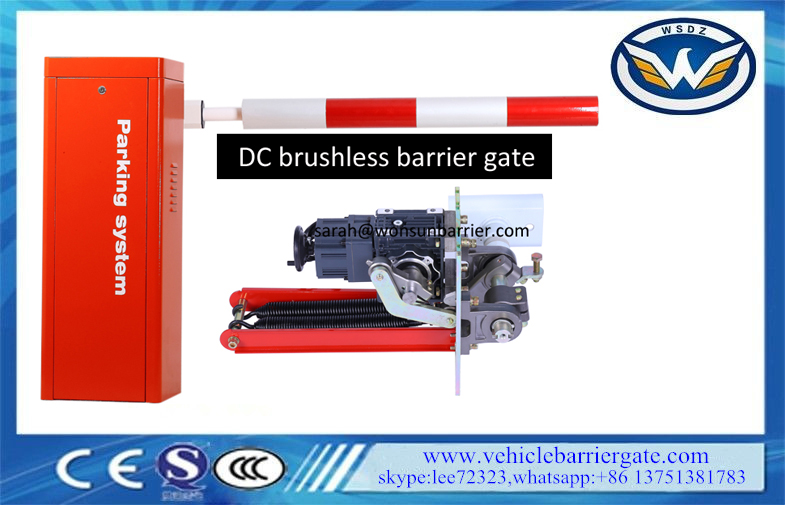

    • Worm-gear secondary variable speed transmission:motor wheel design,gate opening by manually when power off,no blocking, no oil leakage,large torque,low noise,can normally operation at the temperature of minus 45 degrees,ets.
    • DC brushless motor desgin:low consumption, high efficiency,no overheat, wide speed adjustment.
    • Hall limit:Automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at constant speed.
    • Curved triple connecting rod structure,easy to adjust
    • Arm direction quickly interchanged:interchanged according to different directions on construction site,reduce inventory and capital pressure.
    • Special DC brushless controller:use integrated chip dirve, fast processing speed, large memory, powerful function;24V low voltage power supply, adapt to global voltage.


    ModelBoom ShapeMax Boom LengthSpeed
    WST1191Straight boom6m6 seconds
    WST1192Straight boom4.5m3 seconds
    WST1192190 degree, Articulated boom5m6 seconds
    WST1192290 degree, Articulated boom3m3 seconds
    WST11961180 degree, Articulated boom5m6 seconds
    WST11962180 degree, Articulated boom3m3 seconds

    FAQ


    1-Can you install using loop detector or pressure sensor on it?

    Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.


    2-How about the guarantee and after sale service?

    We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.


    3-How long is the leading time?

    For standard item

    10-50 sets:5 working days
    50-100 sets:7-10 working days
    200-500 sets:10-15 working days
    For special item, or need custom design package or logo, need 3-10 working days longer.


    4-How about the payment terms?

    TT,western union,our company already joined the trade assurance,it will highly protect your order security.


    5-How do you send the products to me,how long?

    As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.


    6-What is the package of the barrier gate?

    Inside with a carton package.Then outside,there are wooden crate package.


    7-Can you do OEM service?

    We offer below OEM services:

    1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.

    2)Can print your logo on turnstiles, can customize the retail box packing and other things.


    8-Our services:
    1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
    2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
    3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

    4. We have very experienced engineers ,can help you better use it.


    Contact us for pricelist and catalog:


    Sue Zhang
    Email:sue@wonsunbarrier.com
    Skype:SueZhang729
    Whatsapp:+86 158 7925 9831
