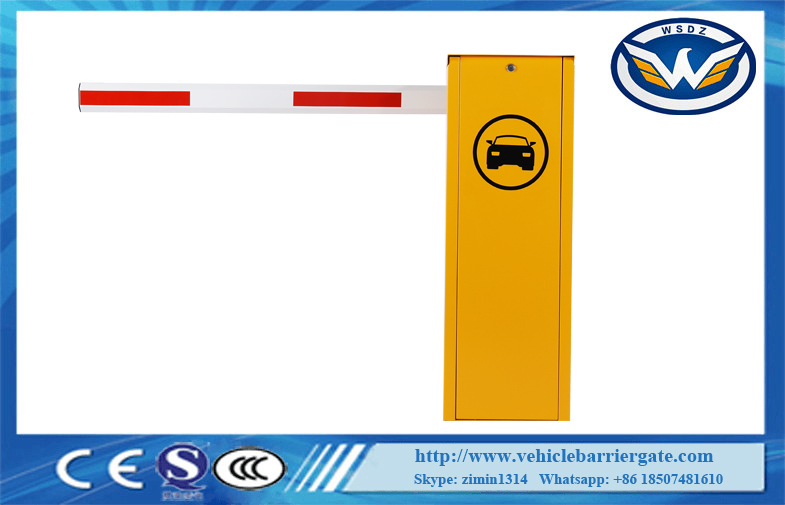

1.5sec 24V DC Motor Vehicle Barrier Gate DC Brushless Motor Parking
Barrier
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M
Features
1 The running speed can be adjusted from 1.5s to 8s
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
Installation, commissioning and use
7.1 Equipment installation
7.1.1 Please select the correct type of barrier gate according to
the specifications of
the pace,and then fix the barrier cabinet with expansion
bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be
done according to the site conditions,and
also make the cast-in-place basement for the non-concrete ground.
7.4 Adjust the Position of Barrier Arm
To adjust the position of the arm (for example, after exerting
excessive force), please take the steps as below:
- open the barrier gate door and remove the cover
- loosen the two fasten screws of the DZ-1 on the boom shaft with the
M12's Allen wrench, so that the boom can be re-positioned by hand.
- adjust the position of the boom (horizontal position, as shown in
picture 1).
- Use the hexagonal wrench to tighten the two fastening screws (72
Nm)
The parameter for selecting the balance tension spring
| Arm Type | The Length of arm | Selection Spring |
Type
| Spec.(diameter*Length) |
| Straight Arm/Folding Arm | 6M≥L＞5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
| 5M≥L≥4.5M | (ø5.5x280) |
| 4.5M＞L≥3M | (ø4.5x280) |
| Fence Arm | 5M≥L≥4M | (ø6.5x280)+(ø6.5x280) |
| 4M＞L≥3M | (ø5.5x280)+(ø4.5x280) |
(the parameter is based on the company’s arm)
