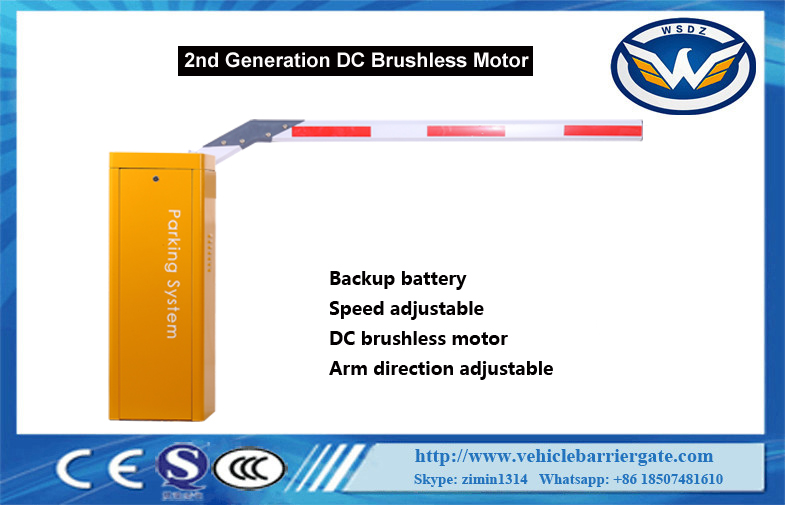

Automatic Boom Barrier With rfid/ DC Motor Automatic Barrier With
New Curved Arm
Contact keira to get barrier videos and pictures!
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M16*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
Technical parameters
4.1 Working temperature(motor): -35℃~+85℃
4.2 Rated voltage:DC24V
4.3 Running speed:1.5s-8s
4.4 Rated current:8.58A
4.5 Rated power:140W
4.6 No-load speed:1850rpm
4.7 Rated speed:1400rpm
4.8 Output Power:56.8N.m
4.9 Relative humidity:≤90%
4.10 Remote control distance:≤100M(in the open place)
4.11 IP Degree:IP44
4.12 Max length of arm:6M
Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation
is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
3.9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
3.10 Connector for traffic light(AC220V,power less than 40W)
3.11 Offering dry contact signal for car parking system(COM,NC,NO)
3.12Auto-delay when closing(adjustable)
3.13 RS485 or CAN network communication interface(no need to
install module)
3.14 Counting interface
3.15 24V backup battery interface(Can be charged by using solar
energy)
RFQ:
Q: What's the order process?
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll
recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to
the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is
acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be
provided upon the service you've chosen. Packaging info will be
sent upon confirmation.
Service Items
9.1 One year’s free servicing is supplied(not including the arm);
9.2 Lifetime charged servicing is offered;
9.3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
9.1Broken by the wrong installation.
9.2Broken by improper voltage.
9.3The surfaces of the system destroyed by wrong installation or
use.
9.4Broken by natural disaster.
9.5Overdue.
9.6Servicing items out of our promises.
