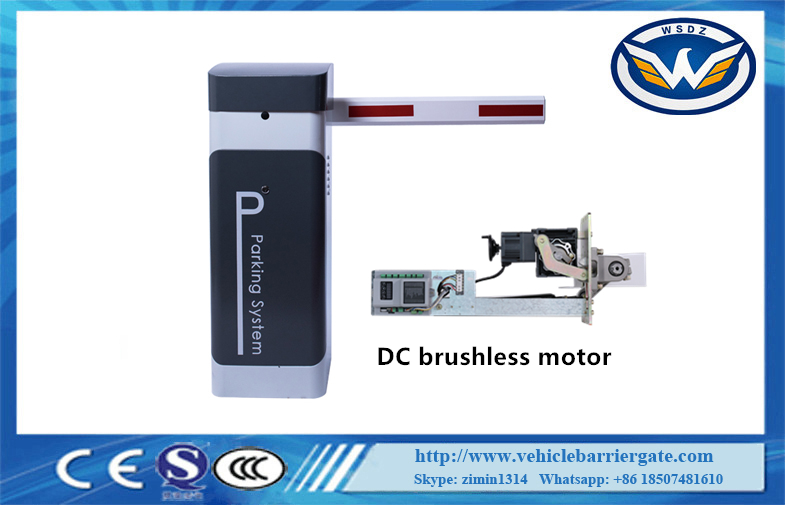

1.5s Fast Speed Inteligent Parking Barrier For Access Control
Barrier Gate With 24V DC Brushless Motor Factory Price
Quick details:
| Model No. | DZ-132 dc brushless motor |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 1.5sec-6sec |
Functions:
1.Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3.Arm automaticlly locking when power off, then open the barrier
gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire
control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
| Model No. | DZ-132 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 1.5sec-6sec |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can also choose your own shipping forwarder. it
normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate
package.
