Automatic Boom Barrier Parking Lot System With RFID Access control Backup Batteries Speed Adjustable


Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610

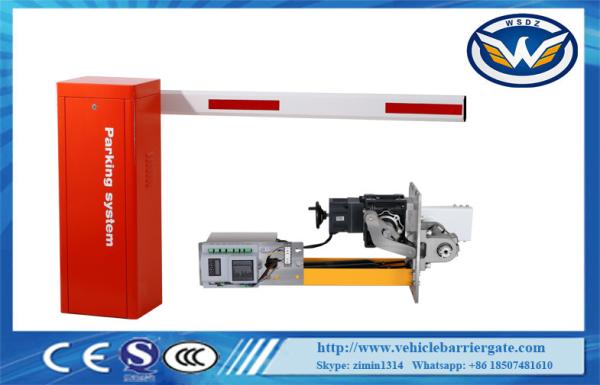

2nd DC brushless motor adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed

technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts

two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance

and long service life .

Functions&Features

1.The operation speed can be adjusted(2s to 6s).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.

4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.

7. Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.

9. High-sensitivity arm auto reverse function (intensity can be adjusted).

10. Parking system interface.

Technical data

4.1 Working temperature(motor): -35℃~+85℃

4.2 Rated voltage:DC24V

4.3 Running speed:1.5s-8s

4.4 Rated current:8.58A

4.5 Rated power:140W

4.6 No-load speed:1850rpm

4.7 Rated speed:1400rpm

4.8 Output Power:56.8N.m

4.9 Relative humidity:≤90%

4.10 Remote control distance:≤100M(in the open place)

4.11 IP Degree:IP44

4.12 Max length of arm:6M

Interchange descriptions:

The product direction can be interchanged, divided into 6 steps.

Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;

Step 2: remove the electrical supporting plate from left side to the right side;

Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);

Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);

Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;

Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange is

completed, no need to adjust other Settings.
