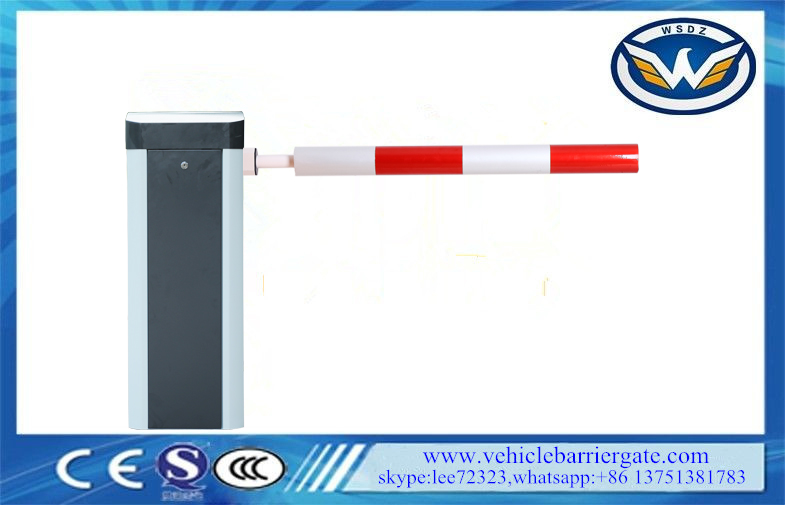

WONSUN Toll Barrier Gate Fast Speed Heavy Duty 24Hrs Without Stop
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage: DC24V
3 Running speed:1.5s-8s
4 Rated current: 8.58A
5 Rated power: 140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power: 56.8N.m
9 Relative humidity: ≤90%
10 Remote control distance: ≤100M( in the open place)
11 IP Degree:IP44
42 Max length of arm: 6M
Why choose DC?
- Mechanical and electrical integration: quickly assembly, easy
maintenance
- Molding production: high precision, fast efficiency, and guaranteed
quality.
- Worm-gear secondary variable speed transmission: motor wheel
design, gate opening by manually when power off, no blacking, no
oil leakage, Large torque. low noise, can normally operate at the
temperature of minus 45 degrees, etc.
- DC brushless motor design: Low consumption, high efficiency, no
overheat, wide speed adjustment.
- Hall limit: Automatically detects the limit when power on without
debugging, detecting the motor speed at all times, and running at a
constant speed.
- Curved triple connecting rod structure, easy to adjust.
- Arm direction quickly interchanged: interchanged according to
different directions on the construction site, reduce inventory,
and capital pressure.
- Special DC brushless controller: use integrated chip drive, fast
processing speed, large memory, powerful function;24v low voltage
power supply adapt to global voltage.
Features
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
The parameter for selecting the balance tension spring
| Arm Type | The Length of arm | Selection Spring |
| | Type
| Spec.(diameter*Length) |
| Straight Arm/Folding Arm | 6M≥L＞5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
| 5M≥L≥4.5M | | (ø5.5x280) |
| 4.5M＞L≥3M | | (ø4.5x280) |
| Fence Arm | 5M≥L≥4M | | (ø6.5x280)+(ø6.5x280) |
| 4M＞L≥3M | | (ø5.5x280)+(ø4.5x280) |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can also choose your own shipping forwarder. it
normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate
package.
