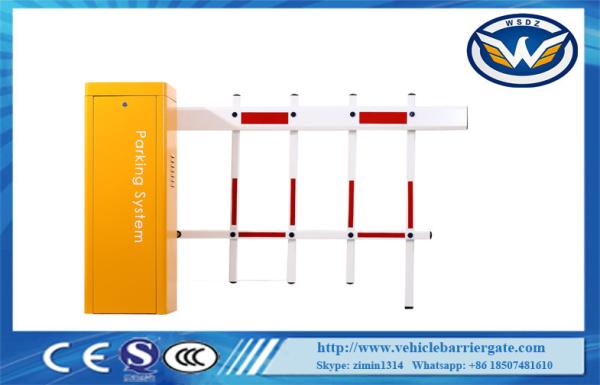

6M 24V Brushless DC Motor Automatic Parking Barrier Gate Barrera
Parking Barrier Remote Control
Wonsun is a professional manufaturer for barrier gate, boom
barrier, sliding gate motor. If any interest, please contact me
freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
1.Product Overview
2nd dc brushless motor adopts the latest mold design technology,
mold die-casting manufacturing technology,
brushless control speed technology, and can be quickly
interchanged, no clutch design, more reliable quality
and more convenient use. The movement adopts two-stage worm gear
transmission and curved crank arm
three- link structure, and the landing rod is fast and stable. Easy
maintenance and long service life .
2 Technical data
| Working Temperature | -35℃~+85℃ |
| Power Supply | DC24V |
| Open/close Speed | 2Sec to 6sec(adjustable) |
| Rated Current | 8.58A |
| Rated Power | 140W |
| Motor No-load Speed | 1850rpm |
| Rated Rotating Speed | 1400rpm |
| Output Power | 56.8N.m |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Protection Grade | IP44 |
| Max Boom Length | 6M
|
3. Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation
is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
3.9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
3.10 Connector for traffic light(AC220V,power less than 40W)
3.11 Offering dry contact signal for car parking system(COM,NC,NO)
3.12Auto-delay when closing(adjustable)
3.13 RS485 or CAN network communication interface(no need to
install module)
3.14 Counting interface
3.15 24V backup battery interface(Can be charged by using solar
energy
Each barrier will include:
| 1 pcs Vehicle Barrier gate |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers, 1 pc push button |
| 1 pcs manual book |
RFQ:
Q: What's the order process?
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll
recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to
the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is
acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be
provided upon the service you've chosen. Packaging info will be
sent upon confirmation.
