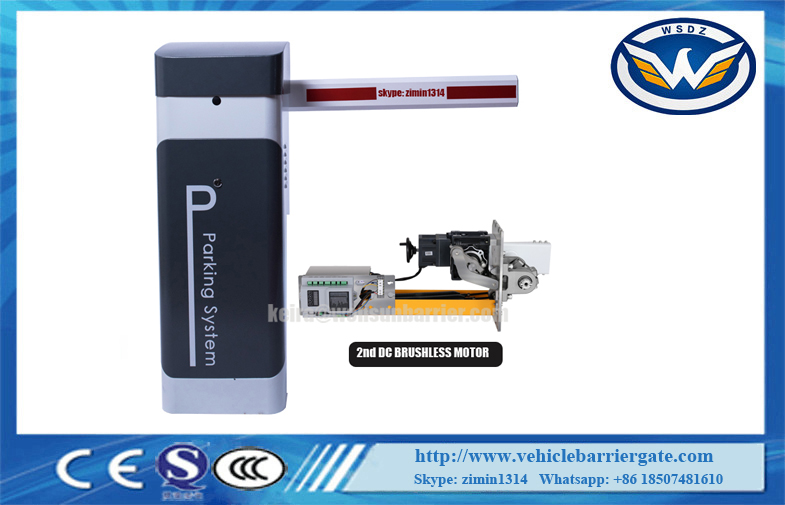

DC Parking Barrier Automatic Car Park Barriers for Vehicle Access
Control Adjustable Speed
Contact Keira Freely!
Email: keira@wonsunbarrier.com
Whatsapp:+86 185 0748 1610
Skype: zimin1314
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M
Features
1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is
stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire
control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install
module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar
energy)
Electrical installation, wiring diagram
7.3.1 All the electrical connections are done before delivery and
please do not change it randomly.The necessity is to connect the
AC220V power and grounding connection.
7.3.2 Traffic light connector:it can connect power no more than
40W.
7.3.3 Infrared photocells an-hit connector: connect the switch
signal for receiver output.
7.3.4 Loop detector connectors:it supports both externally and
internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for
loop detector output.
If the internal type is selected,need connect the wire signal to
vehicle detector wire interface.
7.3.5 Car parking system connectors: connect the system switch
signal to this connector,then it can control the barrier gate
operation.
7.3.6 Limit switch signal of up/down:with output COM,NO,NC,it
monitoring the status of the barrier gate.
7.3.7 RS485 connector:after chosen the options RS485 module,it can
manage MAX 15 pieces of barrier gates by PC software
Type Length and Operating Speed Parameters of Sluice Bar
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S |
| 4.5M>L≥3M | 3S |
| 90 degree folding arm | L≤5M | 5S |
| 180 degree folding arm | L≤5M | 5S |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S |
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
| 4M>L≥3M | 5S |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different
countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate
package.
