RRID Parking Lot 400W Automatic Barrier Gate 3000r/min

Ask Lasest Price
Brand Name :	WONSUN
Model Number :	DZ-Y860 pro
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability :	1000 Sets/Month
Delivery Time :	3-7 working days after received your payment

Add to Cart

Product Details
Company Profile

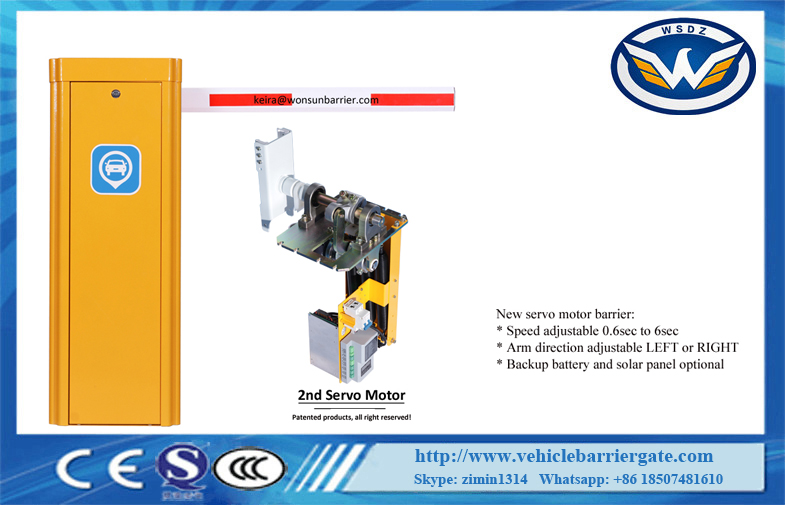

RRID Parking Lot 400W Automatic Barrier Gate 3000r/min

Servo Motor RRID Parking Lot Automatic Barrier Gate Anti-Crash OEM Manufacturer Security Parking Barriers

Safety Precautions

To ensure your safe operation, please strictly in accordance with the provisions of this manual.

To avoid personal injury, it is strictly forbidden to open the door or cover when barrier working.
The barrier housing must be connected to the ground to prevent inductive electric shock.
It is strictly forbidden to stand, walk or place objects under the boom/ arm when barrier working.
The boom/arm and the spring have been matched to the balance state before goods leave out our factory. To avoid the danger of the balance being lost, the length and weight of the boom/arm can not be increased or decreased at random. If you need to change it, please ask the professional for advice.

Functions and Features

1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close limit signal output
11.Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)

Technical Parameter List

working temperature	-50℃~+85℃	-50℃~+85℃
power supply	24VDC, 100/240VAC, 50/60Hz	24VDC, 100/240VAC, 50/60/Hz
Open/close speed	0.9sec to 8sec (adjustable)	0.6sec to 8sec (adjustable)
Rated power	200W	400W
Driving method	Servo motor	servo motor
Humidity	≤90%	≤90%
Remote control distance	≤100m (open place, sunny day)	≤100m ( open place, sunny day)
Protection grade	IP55	IP55
Motor No-load speed	3000r/min	3000r/min
Max boom length	3M-6M	2.5M-6M

Servo rod long rod type speed control table

Menu Parameter Unit Boom type/length	Open arm					Close arm
Menu Parameter Unit Boom type/length	H00-00	H00-04	H00-14	H00-15	H00-17	H00-01	H00-05	H00-14	H00-15	H00-17
6s 6mstraight arm	20	30	10	15	11	20	45	10	15	11
5s 5m straight arm	30	30	15	10	10	30	40	15	10	10
3s 4.5m straight arm	40	30	15	9	9	40	35	15	9	9
1.8s 3m straight arm	60	30	20	9	8	60	30	20	9	8
0.9s 3m straight arm	100	30	30	9	7	90	30	30	9	7
0.6s 2.5m straight arm	120	30	30	8	7	120	45	30	9	7
6s 4.5m 2 fence arm	20	30	10	10	11	20	45	10	15	11
6s 4m 3 fence arm	20	35	10	10	11	20	45	10	15	11

(the parameter is based on the company’s arm)

FAQ

1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.

2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.

3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.

4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.

5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping

forwarder. it normally takes 7-60 days depend on different countries.

6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
