Factory Direct Sell 6M 200W Servo Motor Parking Barrier Gate 24v
Barrier Gate With Solar Power Battery
Product Outline

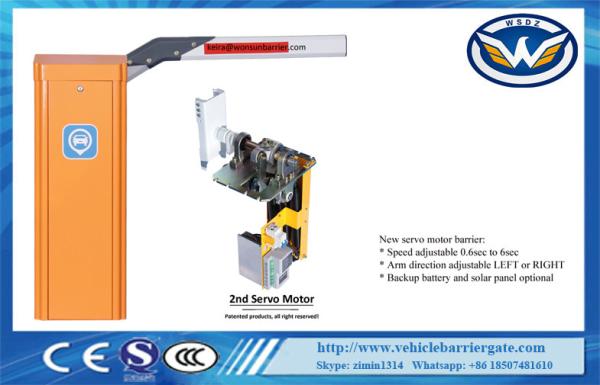

WONSUN 2nd generation servo motor gate adopts integrated design and
mold manufacturing with international
leading technology, compact structure, high precision, high
consistency and standardization, and use planetary
reducer transmission, high efficiency, long life, no oil leakage,
no blocking, low noise, the motor adopts 24V
permanent magnet rare earth synchronous servo motor,
Technical Parameter List
| working temperature | -50℃~+85℃ | -50℃~+85℃ |
| power supply | 24VDC, 100/240VAC, 50/60Hz | 24VDC, 100/240VAC, 50/60/Hz |
| Open/close speed | 0.9sec to 8sec (adjustable) | 0.6sec to 8sec (adjustable) |
| Rated power | 200W | 400W |
| Driving method | Servo motor | servo motor |
| Humidity | ≤90% | ≤90% |
| Remote control distance | ≤100m (open place, sunny day) | ≤100m ( open place, sunny day) |
| Protection grade | IP55 | IP55 |
| Motor No-load speed | 3000r/min | 3000r/min |
| Max boom length | 3M-6M | 2.5M-6M
|
Servo rod long rod type speed control table
 Menu
Parameter
Unit Boom type/length | Open arm | Close arm |
| H00-00 | H00-04 | H00-14 | H00-15 | H00-17 | H00-01 | H00-05 | H00-14 | H00-15 | H00-17 |
| 6s 6mstraight arm | 20 | 30 | 10 | 15 | 11 | 20 | 45 | 10 | 15 | 11 |
| 5s 5m straight arm | 30 | 30 | 15 | 10 | 10 | 30 | 40 | 15 | 10 | 10 |
| 3s 4.5m straight arm | 40 | 30 | 15 | 9 | 9 | 40 | 35 | 15 | 9 | 9 |
| 1.8s 3m straight arm | 60 | 30 | 20 | 9 | 8 | 60 | 30 | 20 | 9 | 8 |
| 0.9s 3m straight arm | 100 | 30 | 30 | 9 | 7 | 90 | 30 | 30 | 9 | 7 |
| 0.6s 2.5m straight arm | 120 | 30 | 30 | 8 | 7 | 120 | 45 | 30 | 9 | 7 |
| 6s 4.5m 2 fence arm | 20 | 30 | 10 | 10 | 11 | 20 | 45 | 10 | 15 | 11 |
| 6s 4m 3 fence arm | 20 | 35 | 10 | 10 | 11 | 20 | 45 | 10 | 15 | 11 |
(the parameter is based on the company’s arm)
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different
countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate
package.
WONSUN Barrier Series: Click the picture and leave your message.
| Classic AC barrier | Economical DC Barrier | Hot Sale DC Barrier | Hot Sale DC barrier | High-end Servo Barrier |
 |  |  |  |
|
Safety Precautions
To ensure your safe operation, please strictly in accordance with
the provisions of this manual.
- To avoid personal injury, it is strictly forbidden to open the door
or cover when barrier working.
- The barrier housing must be connected to the ground to prevent
inductive electric shock.
- It is strictly forbidden to stand, walk or place objects under the
boom/ arm when barrier working.
- The boom/arm and the spring have been matched to the balance state
before goods leave out our factory. To avoid the danger of the
balance being lost, the length and weight of the boom/arm can not
be increased or decreased at random. If you need to change it,
please ask the professional for advice.
Wonsun is a professional manufaturer for barrier gate, boom
barrier, sliding gate motor. If any interest, please contact me
freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Wechat: Keira_Xia
Servo Motor RRID Parking Lot Automatic Barrier Gate Anti-Crash OEM
Manufacturer Security Parking Barriers
Servo Motor RRID Parking Lot Automatic Barrier Gate Anti-Crash OEM
Manufacturer Security Parking Barriers Servo Motor RRID Parking Lot
Automatic Barrier Gate Anti-Crash OEM Manufacturer Security Parking
Barriers
Safety Precautions
To ensure your safe operation, please strictly in accordance with
the provisions of this manual.
- To avoid personal injury, it is strictly forbidden to open the door
or cover when barrier working.
- The barrier housing must be connected to the ground to prevent
inductive electric shock.
- It is strictly forbidden to stand, walk or place objects under the
boom/ arm when barrier working.
- The boom/arm and the spring have been matched to the balance state
before goods leave out our factory. To avoid the danger of the
balance being lost, the length and weight of the boom/arm can not
be increased or decreased at random. If you need to change it,
please ask the professional for advice.
