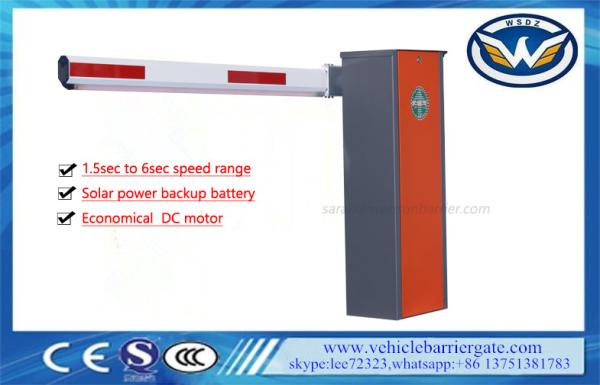

Cheap LED Barrier Traffic Barrier Gate 1.5sec to 6sec DC Motor
How to reduce inventory?
1, Speed range 0.5sec to 6sec,
you can set the speed wherever and whenever you need, less
inventory and less fund pressure
Functions
- Open and close speed adjustable
- When power is off, manually open and close the arm, and lock
itself.
- Wireless remote
- Photocell IO port output.
- Loop detector anti-collision IO output.
- Open, and close control input.
- 12V traffic light output.
- Traffic light signal output.
- Open and close limit signal output.
- Counting(fleet) input RS485 communication input
- 24V battery input port.
- Open and close arm speed deceleration function
- Arm auto-reverse function(force adjustable)
- Anti-collision alarm function(additional sensors and alarms are
required)
| Technical data |
Working Temperature | -35℃~+85℃ |
| Power Supply | 24/100/240VAC, 50/60Hz |
| Open/close Speed | 1.5sec to 6sec (adjustable) |
| Rated Power | 140W |
| Driving Method | DC motor |
| Humidity | <90% |
| Remote Control Distance | <100m(open, sunny weather) |
| Protection Grade | IP44 |
| Motor No-load Speed | 1400r/min |
| Max Boom Length | 1-6m |
Type Length and Operating Speed Parameters of arm
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S |
| 4.5M>L≥3M | 3S |
| 90 degree folding arm | L≤5M | 5S |
| 180 degree folding arm | L≤5M | 5S |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S |
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
Service Items
1 One year’s free servicing is supplied(not including the arm);
2 Lifetime charged servicing is offered;
3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
1 Broken by the wrong installation.
2 Broken by improper voltage.
3 The surfaces of the system destroyed by wrong installation or
use.
4 Broken by natural disaster.
5 Overdue.
6 Servicing items out of our promises.
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and
pressure sensor.
2-How about the guarantee and after-sale service?
We have 1 year quality guarantee, We own well-trained and passional
sales & after-sale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT, western union, our company already joined the trade assurance,
it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume, and heavy-duty, we suggest you ship
by sea. You can also choose your own shipping forwarder. it
normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there is a wooden crate
package.
