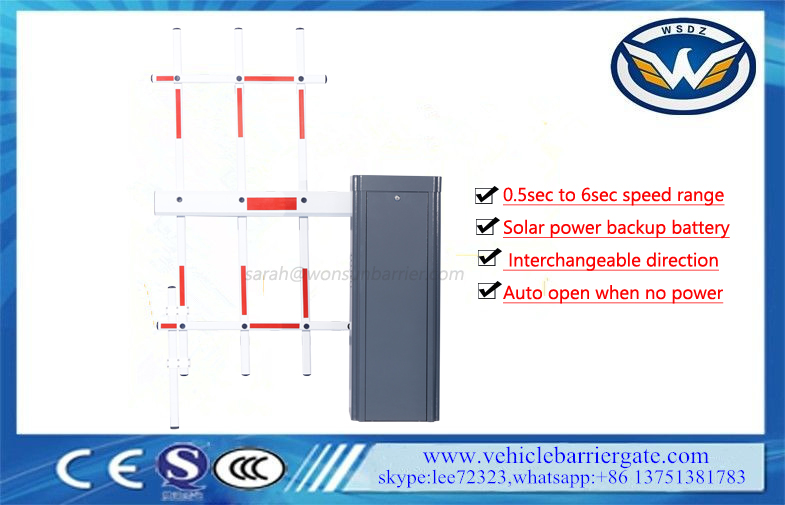

Bi-directional 2 Fence Automatic Barrier Gate Auto Open Speed
Change
How to reduce inventory?
1, Speed range 0.5sec to 6sec,
2, Speed interchangeable, Left/Right
you can set the speed and the direction wherever and whenever you
need, less inventory and less fund pressure
Functions
| 1, Open and close speed adjustable |
| 2, Arm direction left and right can change easily. |
| 3, When power is off, manually open and close the arm, and lock
itself. |
| 4, Wireless remote |
| 5, Photocell IO port output. |
| 6, Loop detector anti-collision IO output. |
| 7, Open, and close control input. |
| 8, 12V traffic light output. |
| 9, Traffic light signal output. |
| 10, Open and close limit signal output. |
| 11, Counting(fleet) input RS485 communication input |
| 12, 24V battery input port. |
| 13, Delay close arm function(1-300sec, adjustable) |
| 14, Open and close arm speed deceleration function |
| 15, One-key setting arm type with corresponding speed |
| 16, Arm auto-reverse function(force adjustable) |
| 17, Anti-collision alarm function(additional sensors and alarms are
required) |
| Technical data |
Working Temperature | -50℃~+85℃ |
| Power Supply | 24/100/240VAC, 50/60Hz |
| Open/close Speed | 0.9sec to 6sec (adjustable) |
| Rated Power | 200W |
| Driving Method | Servo motor |
| Humidity | <90% |
| Remote Control Distance | <100m(open, sunny weather) |
| Protection Grade | IP55 |
| Motor No-load Speed | 300r/min |
| Max Boom Length | 1-6m |
Type Length and Operating Speed Parameters of arm
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S |
| 4.5M>L≥3M | 3S |
| 90 degree folding arm | L≤5M | 5S |
| 180 degree folding arm | L≤5M | 5S |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S |
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
Service Items
1 One year’s free servicing is supplied(not including the arm);
2 Lifetime charged servicing is offered;
3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
1 Broken by the wrong installation.
2 Broken by improper voltage.
3 The surfaces of the system destroyed by wrong installation or
use.
4 Broken by natural disaster.
5 Overdue.
6 Servicing items out of our promises.
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and
pressure sensor.
2-How about the guarantee and after-sale service?
We have 1 year quality guarantee, We own well-trained and passional
sales & after-sale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT, western union, our company already joined the trade assurance,
it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume, and heavy-duty, we suggest you ship
by sea. You can also choose your own shipping forwarder. it
normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there is a wooden crate
package.
