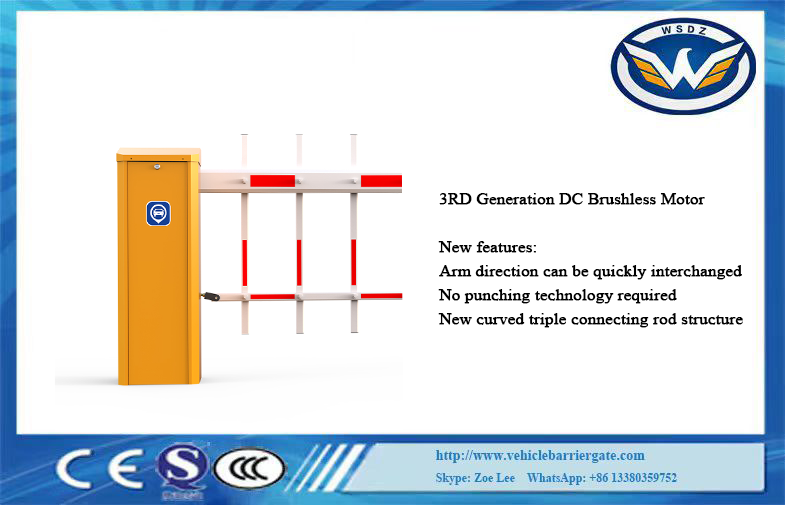

Automatic Swing Out Arm Remote Control Parking Barrier Gate With 6m
Arm
5th DC brushless Motor Barrier Gate Features
1.1 Wireless remote control control open/close
1.2 Auto reverse function(force adjustable)
1.3 Infrared photocells connector is available
1.4 Loop detector connector is available.
2.Intelligent Barrier Gate Technical Parameters
| Working temperature(motor): -35℃~+85℃ |
| Rated voltage:DC24V |
| Running speed:1.5s-8s |
| Rated current:8.58A |
| Rated power:160W |
| No-load speed:1850rpm |
| Rated speed:1400rpm |
| Output Power:56.8N.m |
| Output Power:56.8N.m |
| Remote control distance:≤100M(in the open place) |
| IP Degree:IP44 |
| Max length of arm:6M |
3. Equipment installation
Please select the correct type of barrier gate according to the
specifications of
the pace,and then fix the barrier cabinet with expansion
bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be
done according to the site conditions,and also
make the cast-in-place basement for the non-concrete ground.
4.Technical parameters
4.1 Working temperature(motor): -35℃~+85℃
4.2 Rated voltage:DC24V
4.3 Running speed:1.5s-8s
4.4 Rated current:8.58A
4.5 Rated power:160W
4.6 No-load speed:1850rpm
4.7 Rated speed:1400rpm
4.8 Output Power:56.8N.m
4.9 Relative humidity:≤90%
4.10 Remote control distance:≤100M(in the open place)
4.11 IP Degree:IP44
4.12 Max length of arm:6M
5.Barrier arm balance adjustment
1,Please check and confirm arm status in horizon and vertical
position,then
tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring
level of tightness
of M8*140MM, make sure the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two
springs simultaneously.
4,If arm open and close shake too much, Please check below picture.
Open arm
shaking a lot means spring is too tight, loose a little. Close arm
shaking too much means
spring too lose, repeat tighten a little spring.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY, generally it is 2-5 days if the goods are in
stock, or it is 5-7 days for larger order
Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc, or your requirements.
Q: How about your payment terms?
A: T/T or Western Union etc.
Q: Do you provide free samples ?
A: No, we don't provide free samples. The MOQ of our products is
1pc.
Any question about toll gate price, quality, shipment, please don’t
hesitate to contact us.
