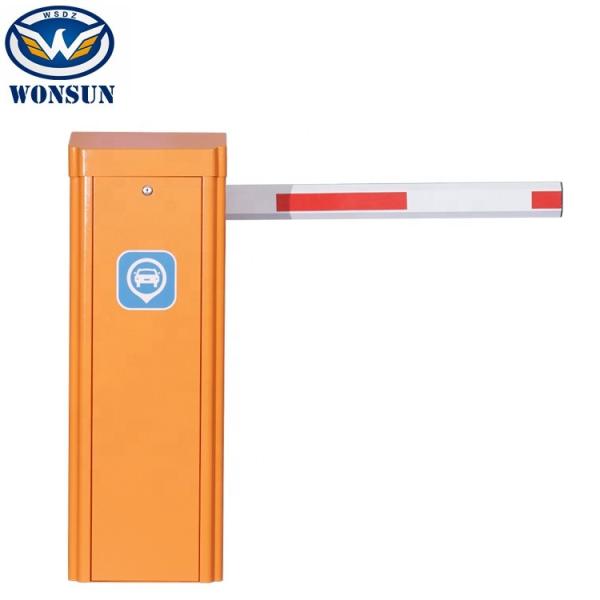

Automatic waterproof Servo motor Vehicle Barrier Gate with CE
certificate
Quick Details:
WONSUN 2nd generation servo motor gate adopts integrated design and
mold manufacturing with international leading technology, compact
structure.High precision, high consistency, and standardization.
And use planetary reducer transmission, high efficiency, long life,
no oil leakage, no blocking, low noise the motor adopts 24V
permanent magnet rare earth synchronous servo motor, small size,
low power consumption, large torque, wide speed regulation, no
heat,small penetration, precise limit, etc., using a digital signal
processor(DSP) As the control core, it can realize more complex
algorithms, realize network and intelligence,(IPM) An internal
integrated drive circuit can detect faults and display fault codes
t quickly solve fault problems. The three-bar linkage design of the
machine core makes the rapid rise and fall operation more stable
usingsolar charging applications. It is suitable for unmanned
occasions such as railway crossings, fire passages, oil
stations,mine tunnels. etc. without electricity, and fully realizes
automatic operation control.
Technical Data
| Working Temperature | -50℃~+85℃ |
| Power Supply | 24/100/240VAC, 50/60Hz |
| Open/close Speed | 0.9sec to 6sec (adjustable) |
| Rated Power | 200W |
| Driving Method | Servo motor |
| Humidity | <90% |
| Remote Control Distance | <100m(open, sunny weather) |
| Protection Grade | IP55 |
| Motor No-load Speed | 300r/min |
| Max Boom Length | 1-6m |
DZ-Y890 Pro Barrier Gate Functions:
1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close limit signal output
11.Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms
are required)
Type Length and Operating Speed Parameters of Bar
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S |
| 4.5M>L≥3M | 3S |
| 90 degree folding arm | L≤5M | 5S |
| 180 degree folding arm | L≤5M | 5S |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S |
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
Learning Remote control
The remote control using special IC learning code remote
controller, 418MHz
wireless frequency, strong anti-interference, long remote control
distance, that can up
to 100meters in good weather, use easily and durable. The receiver
of learning code
remote control can store 16 different remote control codes, and
support unlimited
number of same code remote control. The external receiver learned
the remote control
within 5 seconds when power on,press the open/close key at the same
time to
complete the learning, and reset to continue learn when not
complete. If repeat the
learning, open the external receiver shell, there is a white button
on circuit board, hold
down 15 seconds to delete the remote control code, continue to
learn or press the
white button to learn.
FAQ
1-Is there any loop detector or pressure sensor on it?
Yes,There are loop detector and pressure sensor together with the stanadard advertising barrier gate.
2-How long is the guarantee and after sale service?
We have one-year quality guarantee, well tranied and passional
sales & aftersale services can be provided.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, 3-10
working days longer.
4-How about the payment terms?
TT,western union, paypal and so on
5-How do you ship the goods and how long does it take?
As our products are heavy-duty and in big volume, we suggest shipping by sea. You can also choose your
own shipping forwarder. it normally takes 7-60 days depend on
different countries.
6- How do you pack the vehicle barrier gates?
We normally pack them with a hardcard box inside and there is a
wooden crate package outside.
