Slolar Powered Automatic Barrier Booms Gate Vehicle Barrier Gate
With Fence Arm

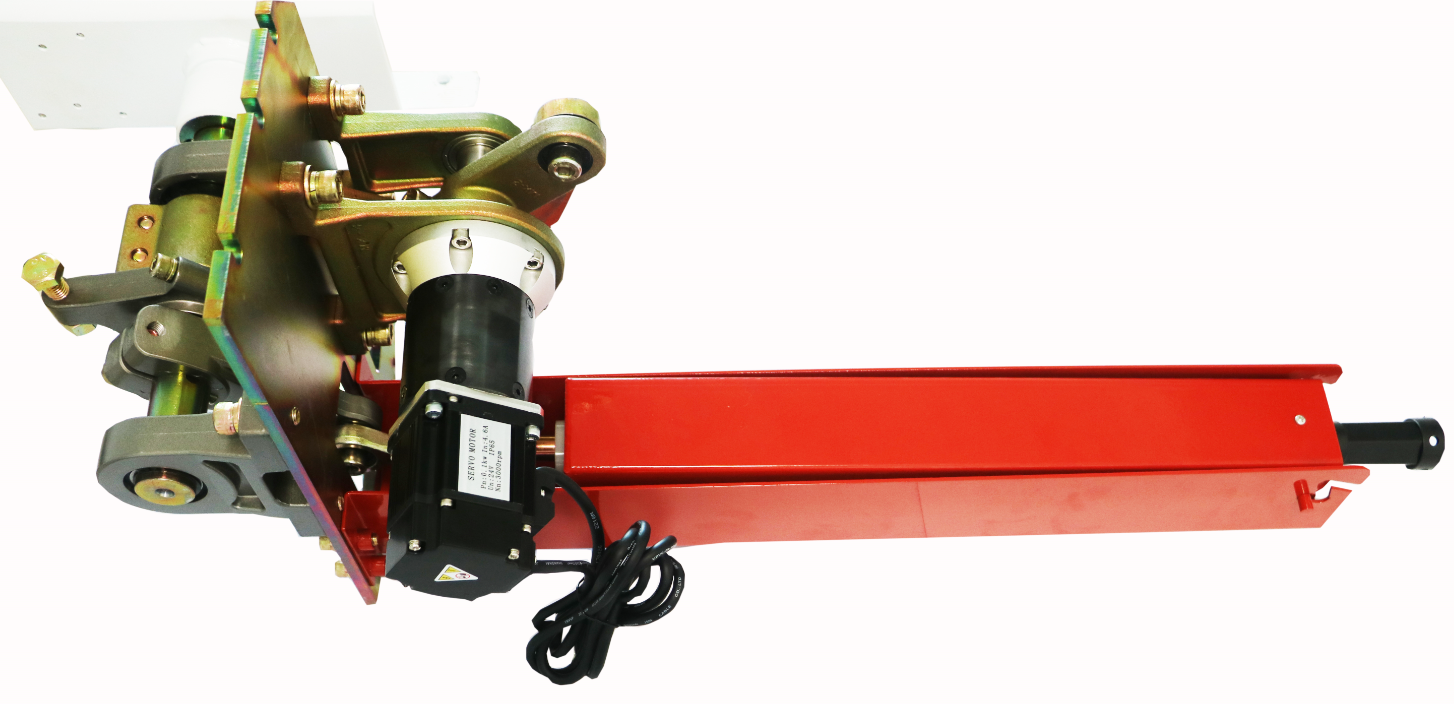

Servo Motor Details:
| The barrier gate motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), adjust to the global voltage, high-speed operation and rapid
response, it will not overheat after 24 hours, frequent operation,
speed time can be adjusted based on the vehicle flow and arm
length, safe and reliable. The series servo barrier gate is
free-debugging and free-maintenance, achieve the fully automated
and intelligent, and the barrier arm open/close is fast and smooth,
easy to use and safe. |
 |
Technical Specification
| 1 | Product Name | Slolar Powered Automatic Barrier Booms Gate Vehicle Barrier Gate
With Fence Arm |
| 2 | Rated Volatge | AC90V~AC264V,DC24V,50/60HZ |
| 3 | Speed Time | 0.3s,0.6s,0.9s,2s,4s,6s |
| 4 | Motor Power | 50W,max 100W |
| 5 | Boom Length | 2meter to 6meter(max) |
| 6 | Working Temperature | -40℃~85℃ |
| 7 | Housing Size | 342*312*959*2mm(L*W*H*TH) |
| 8 | Lifetime | >10 million times or 10 years |
| 9 | MTTR | <0.5hour |
| 10 | MTBF | >5 million times |
| 11 | Protection Grade | IP68 |
| 12 | Remote Controll Distance | ≤100 meter |
| 13 | Motor Speed | 3000 r/min |
| 14 | Relative Humidity | ≤90% |
| 15 | Running Noise | <50dB |
| 16 | Net Weight | 42.6KG |
| 17 | Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Commercial
Premises, Apartment Block Access |
Barrier Gate Controller
| DZ Controller | | |
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
 |
Installation Direction
RFQ
1.Are you the manufacturer or trade company?
-------We're professional manufacturer who has our own factory in Shenzhen
since 2007.
2.What is your biggest sadvantage?
----------Serve motor,support for AC and DC power,only us use this
motor for barrier gate in China,rod and operation time can be
adjusted,no limit switch,free-debbugging.
3.Why the price is higher than others?
-------This barrier gate combining permanent-magnet synchrous serve
motor(PMSM motor),the technology is the mostt anvanced in China.At
the same time,we can supply the more cheaper price barrier gate to
meet different clients.
4.What's the MOQ?
-------Sample order for 1 set is supported.
5.What is your delivery time?
---------As for usual order,it is 3-5 days after received your payment with
50 sets order quanlity.
--------For OED order,it is 7-15 days after received your payment
with 30 sets order quality.
6.What is thr terms of payment?
--------30%-40% advance deposite,60%-70% balance beforefor shipment for
large quantity.
7.What is your Warranty?
--------Our Warranty is 2 year.
