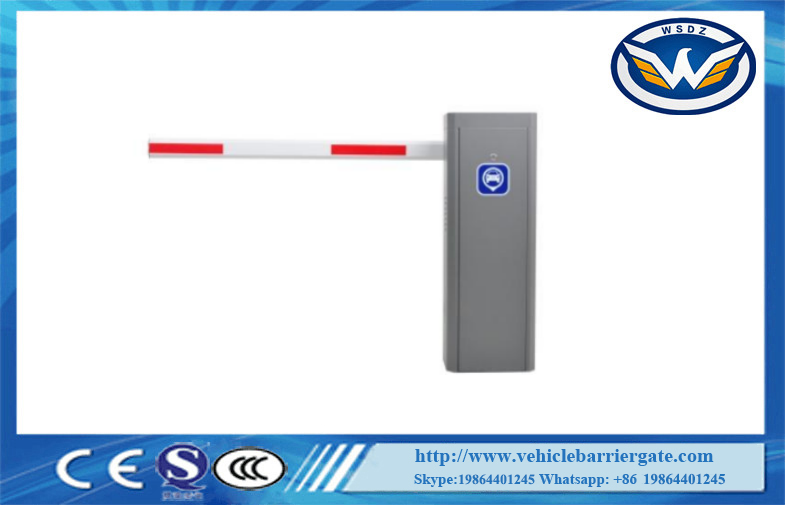

5th Generation DC Brushless Barrier Gate with Interchangeable Arm
Direction for Traffic Barrier
| Model No. | DZ-2212 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 335*230*975mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V/AC110V/220V,50/60HZ |
| Related Power | 150W |
| Working Temperature | -35°C to +65°C |
| Remote control system | ≤100m(open,sunny weather) |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Protection class | IP54 |
| Beam Length | 3M~6M |
| Opening/Close Time | 2.5sec-6sec |
Functions and Features:
1 The running speed can be adjusted(2.5sec-6sec)
2 Arm direction can be quickly interchanged
3 Barrier gate up and down signal relay switch output
4 R&G traffic light relay switch signal output
5 External loop detector signal anti-smashing interface
6 Infrared sensor signal anti-smashing interface
7 Count mode interface
8 Arm swing out function,when the vehicle hit the barrier gate,the
arm can be swing out to avoid further damage on the vehicle and
barrier machinery core
9 High-sensity arm auto reverse function (intensity can be adjusted )
10 Parking system interface
11 RS485 coomunication interface
12 Power off the backup battery inerface
13 Automatic arm lift function when power off (need to add power storage module)
14 IP54 protection class

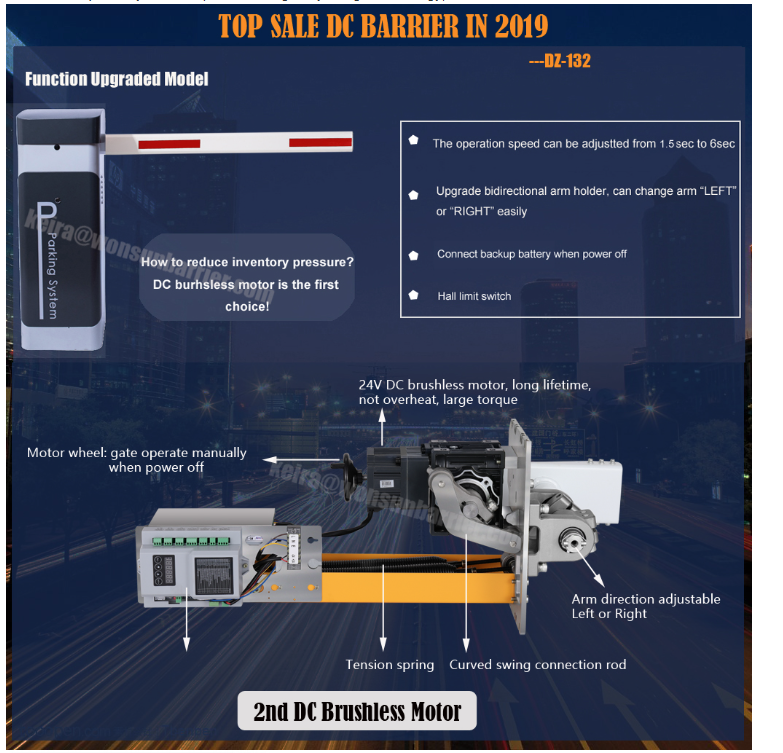

15 5TH Generation DC Brushless Barrier Gate
16 1850 r/min Motor No-load speed
17 OEM/ODM supported
Our Services
Service for free:
1. One year free service is supplied(not including the arm and
remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and
trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7
days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your
requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
