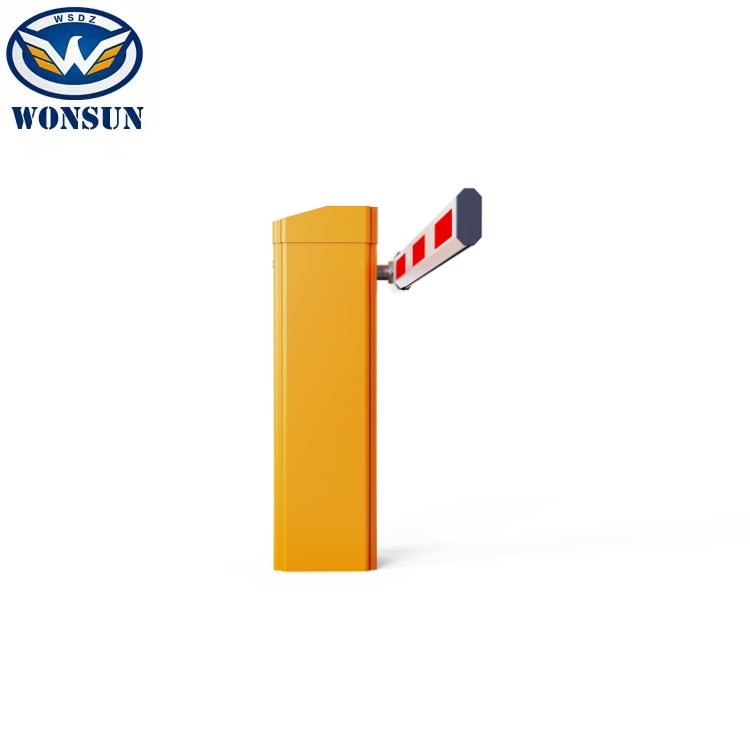

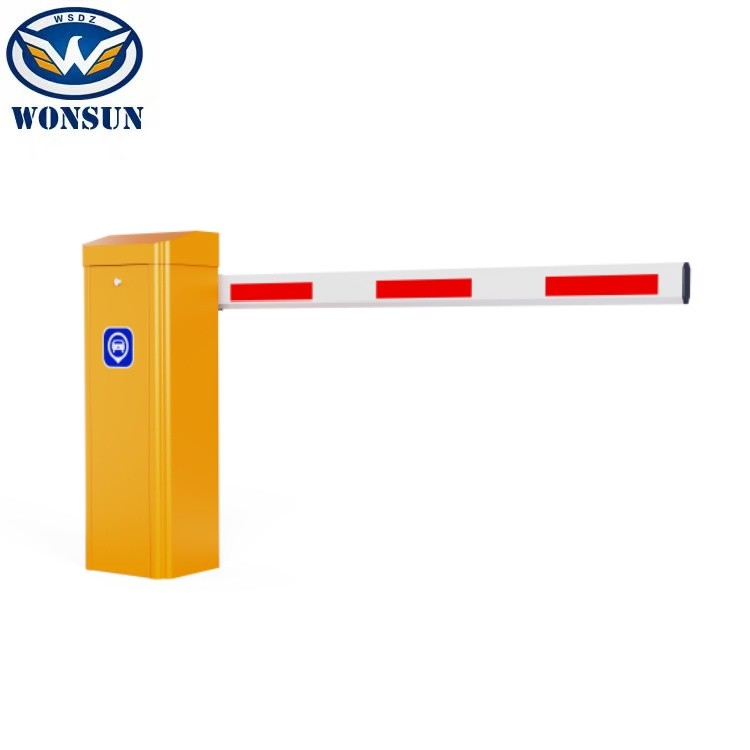

2nd Generation Servo Customized Barrier Gate with Arm Deriection
quickly reaction use in traffic or parking barrier
| Model No. | DZ-890 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 340*400*970mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | 24/100/240VAC,50/60HZ |
| Related Power | 200W;400W |
| Working Temperature | -35°C ~ +65°C |
| Remote control system | ≤100m(open,sunny weather) |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Protection class | IP54 |
| Beam Length | 3~6M;2.5M |
| Opening/Close Time | 0.9sec-8sec;0.6sec-6sec(Adjustable) |
Functions and Features:
1.Open and close can be adjustable 0.9sec-8sec;0.6sec-6sec (Adjustable)
2.Arm direction left and right can change easily
3.When power off ,manual open and close arm,and lock itself
4.Wireless remote
5.Phonecell IO port output
6.Loop detector anti-collision IO output
7.Open and close control input
8.12V Traffic light output
9.Traffic light signal output
11.Counting(fleet) input RS485 communication input
12.24V battery input port
13.Delay close arm function (1-300 sec.A djustable)
14.Open and close arm speed deceleration fuction
15.One-key setting arm type with corresponding speed
16.Arm auto reverse fuction (Force adjustable)
17.Anti-collision alarm function (addictional sensors and alarms
are required)
18 Communication input
Our Services
Service for free:
1. One year free service is supplied(not including the arm and
remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and
usage
4. Overdue service items are out of our promise.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and
trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7
days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your
requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
