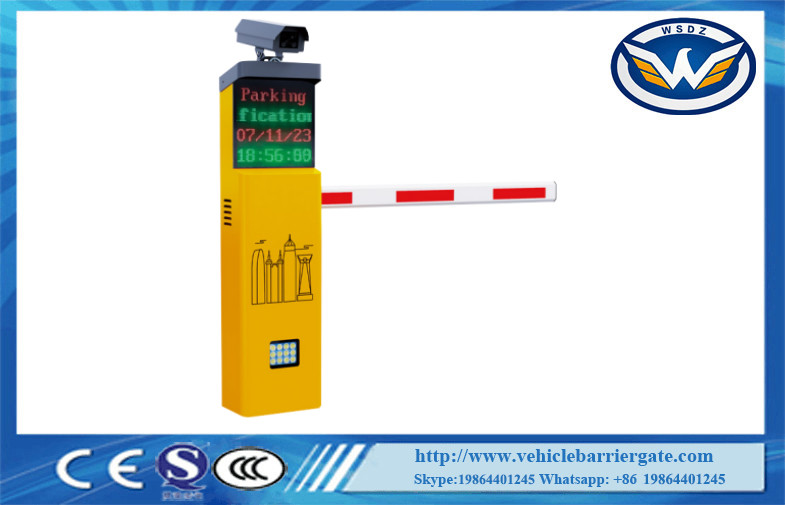

LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking

Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers

    Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers
    • Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers
    • Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers
    • Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers
    • Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers
    • Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers
    • Buy cheap LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking from wholesalers

    LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking

    Ask Lasest Price
    Brand Name : WONSUN
    Model Number : CDZ-DZ-2366
    Certification : CE ISO SGS
    Price : $543/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3000 set/sets per month
    • Product Details
    • Company Profile

    LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking

    LRP Integrated Barrier Machine with Camera automatic recongnized system widely use in traffic or parking

    Model No.CDZ-DZ-2366
    Framework MaterialCold-roll sheet
    BeamAluminum alloy
    Dimension341*205*1150mm
    Net Weight48KG
    Input InterfacePhoto cell, loop detector, parking system,wire control
    Input12V relay signal or Pulse Wide>100MS
    Power SupplyDC24V/100AC,50/60HZ
    Related Power200W
    Working Temperature-35°C ~ +65°C
    Remote control system≤100m(open,sunny weather)
    MCBF5million time
    Push ButtonSupport
    Remote ControlTwo button remote transmitter, Distance≤100m
    Protection classIP54
    Beam Length4.5M;6M
    Opening/Close Time1.2sec-3sec;2.5~6sec

    Functions and Features:
    1.Open and close can be adjustable( 1.2sec-3sec;2.5~6sec )

    2.Arm direction left and right can change easily

    3.When power off ,manual open and close arm,and lock itself

    4.Wireless remote

    5.Phonecell IO port output

    6.Loop detector anti-collision IO output

    7.Open and close control input

    8.12V Traffic light output

    9.Traffic light signal output

    11.Counting(fleet) input RS485 communication input

    12.24V battery input port

    13.Longer service life and a lower failure rate.

    14 Camera recognize technolegy can automatically open and drop the arm

    15 1850r/min no-load mortor


    LRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / ParkingLRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / ParkingLRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / ParkingLRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / ParkingLRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / ParkingLRP Integrated Barrier Machine With Camera Automatic Recongnized System For Traffic / Parking


    Our Services

    Service for free:
    1. One year free service is supplied(not including the arm and remote)

    2. Lifetime charged service is supplied

    3. Technical service is supplied

    4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

    5. Technical support and aftersales service, it is a long term relatioship between us.

    6. Price can be negotiable when you have big order quantity.


    Service for charging:

    1. Broken by wrong installation

    2. Broken by improper voltage

    3. The surfaces of the barrier destroyed by wrong installation and usage

    4. Overdue service items are out of our promise.


    FAQ

    Q: Are you trading company or manufacturer ?
    A: We are a professional barrier gate manufacturer, indusrty and trade integration.
    Q: How long is your delivery time?
    A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

    We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
    Q: How about payment terms our company provide?
    A: T/T or Western Union or
    Q: Do you provide samples ?
    A:No,we don't provide free samples. The MOQ of our products is 1pc.
