Brand Name : | WONSUN |
Model Number : | DZ-132 |
Certification : | CE ISO SGS |
Price : | $399/set |
Supply Ability : | 3000 set/sets per month |

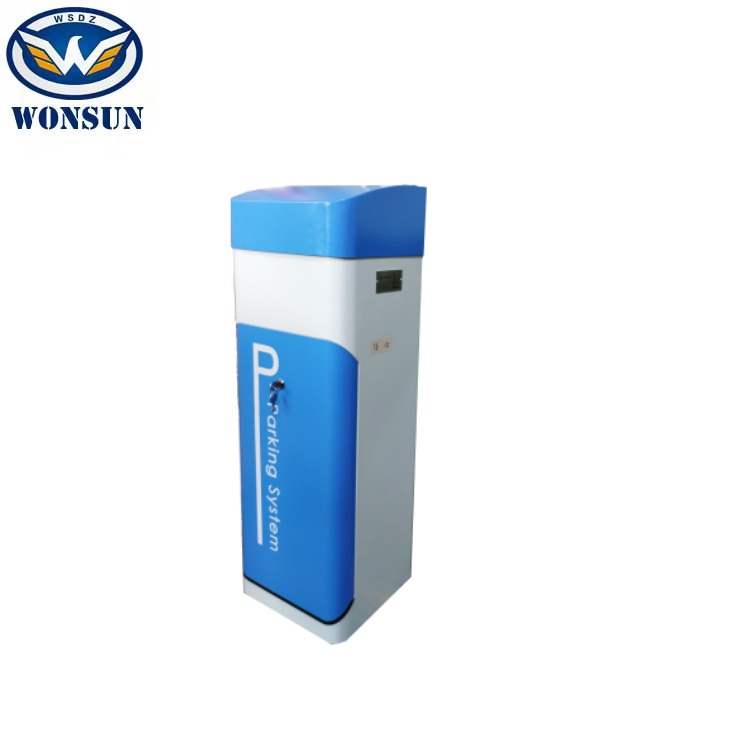

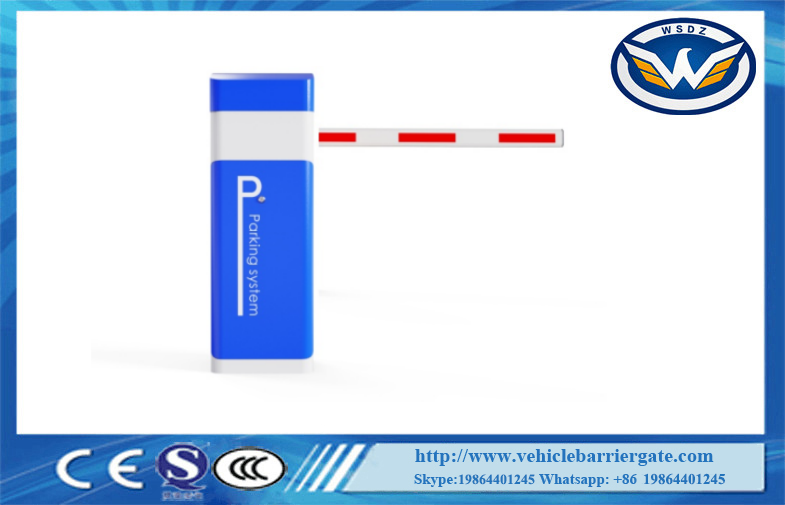

1st Generation DC Brushless Barrier Gate with Arm Direction Can Be Quickly Interchanged use in traffic barrier
Model No. | DZ-132 |
Framework Material | Cold-roll sheet |
Beam | Aluminum alloy |
Dimension | 343*300*1001mm |
Net Weight | 48KG |
Input Interface | Photo cell, loop detector, parking system,wire control |
Input | 12V relay signal or Pulse Wide>100MS |
Power Supply | DC24V/AC110V/220V;50/60HZ |
Related Power | 160W |
Working Temperature | -35°C to +65°C |
Remote control system | ≤100m(open,sunny weather) |
MCBF | 5million time |
Push Button | Support |
Remote Control | Two button remote transmitter, Distance≤100m |
Protection class | IP54 |
Beam Length | 3~6M |
Opening/Close Time | 1.5sec-6sec |
Functions and Features:
1.The operation speed can be adjustable (1.5sec~6sec)
2.Arm direction can be quickly interchanged
3.Barrier gate up and down signal anti-smashing interface
4.R&G Traffic light relay switch signal output
5.External loop detector signal anti-smashing interface
6.count mode interface
7.High-sensitivity arm auto revese function (intensity can be adjusted)
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage on vehicle and machine core
9.High sensitity arm auto reverse fuction (intensity can be adjusted)
11.Parking system interface
12.RS485 communication interface
13.Automatic arm lift fuction when power off (need to add power storage module)
Service for free:
1. One year free service is supplied(not including the arm and
remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and
trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7
days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your
requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
![]() |
