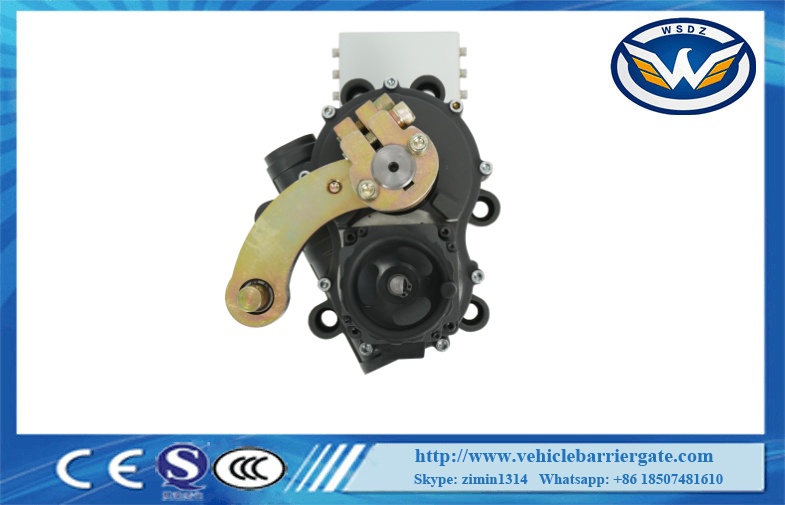

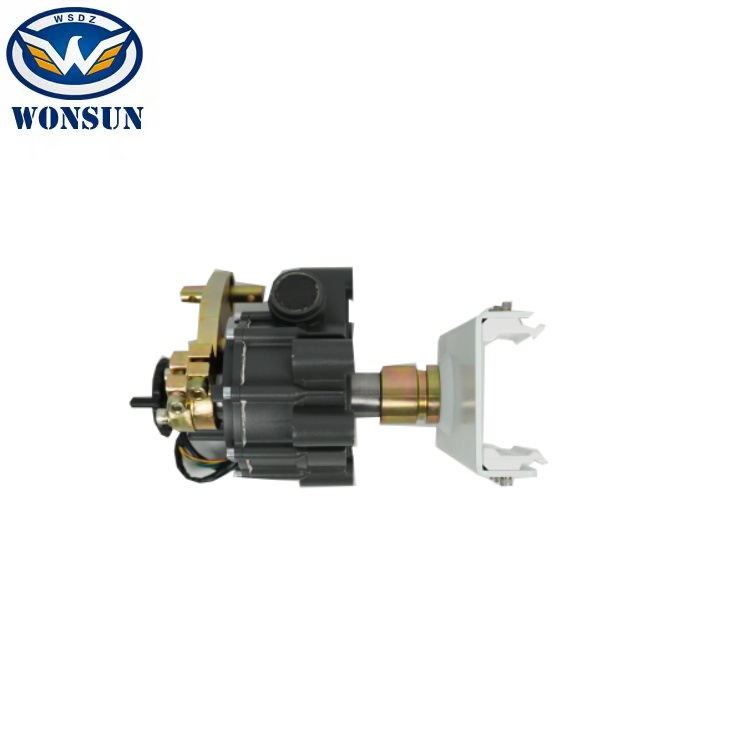

6th DC Brushless motor Fast speed unblocked low noise longer life for sliding gate automatic barrier gate
| Model No. | DZJX-6 |
| Framework Material | Cold-roll sheet |
| Usage | barrier gate |
| Relative power | 160W |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | 110/220V +-10%,50/60HZ |
| Brand | WONSUN |
| Working Temperature | -35°C to +65°C |
| Remote control system | ≤100m(open,sunny weather) |
| MCBF | 5million time |
| Place of Origin | Guangdong, China |
| CEM/ODM | supported |
| Certificate | CE |
| Name | 6th DC Brushless motor |
| Opening/Close Time | 1.5sec~6sec |
Functions and Features:
1 The operation speed can be adjusted(1.5~6sec)
2 Up and slow down can be adjusted
3 The limit angle can be adjusted
4 Left and right direction can be quickly interchanged
5 The barrier arm can be manually operationd in case of power failure
6 418frequency learning code remote controller
7 Infrared photocell sensor IO signal anti-collision signal input fuction
8 Loop deterctor and radar IO signal anti-collision signal input function
9 Up,down and stop IO signal anti-collision signal input fuction
10 Counting(fleet) fuction
11 LED light IO signal output fuction
12 Traffic light IO signal output fuction
13 Up and down in place,normally open and normally closed signal output fuction
14 RS485 communication output fuction
15 Delay arm drop fuction
16 Arm auto-reverse function
17 Automatic lifting functionwhen power is off (requires addictional power storage module)
18 IO port single-key cycle up down function
19 Loop detecor normally open and manally closed function
21 Anti-collision alarm function (requires addictional fee,installation of alarm and sensor)
22 Fire linkage signal input function
23 The IO port closes the signal input function
24 24V storage battery input fuction
Our Services
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
