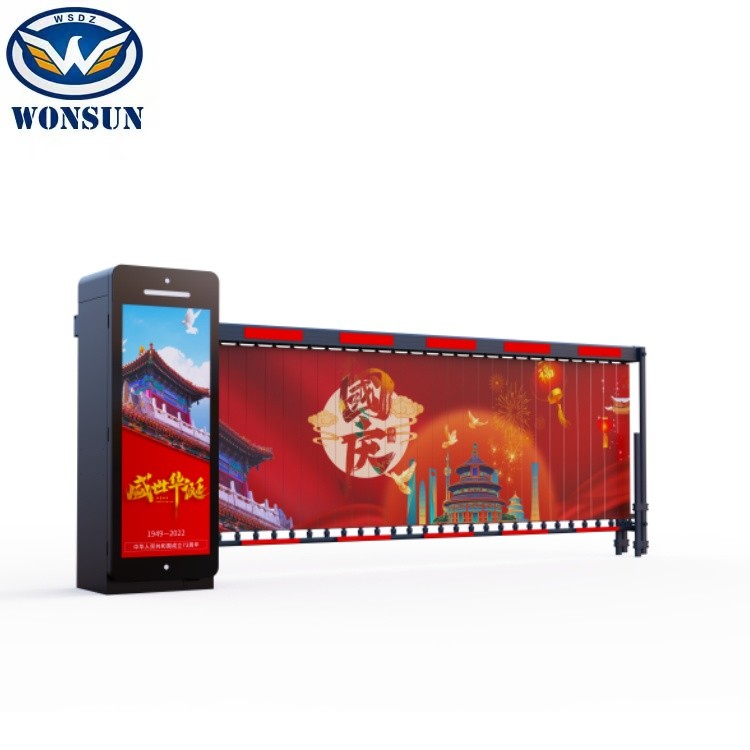

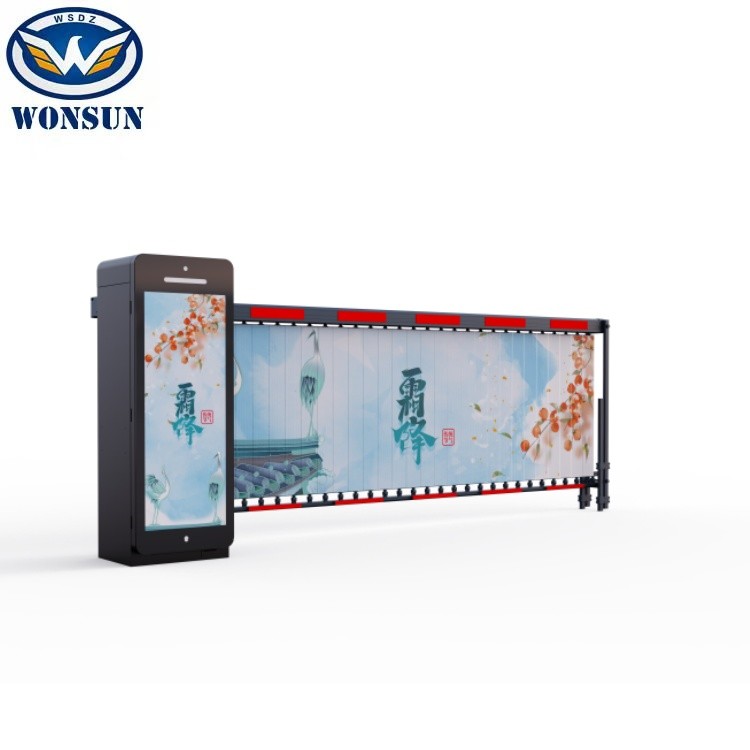

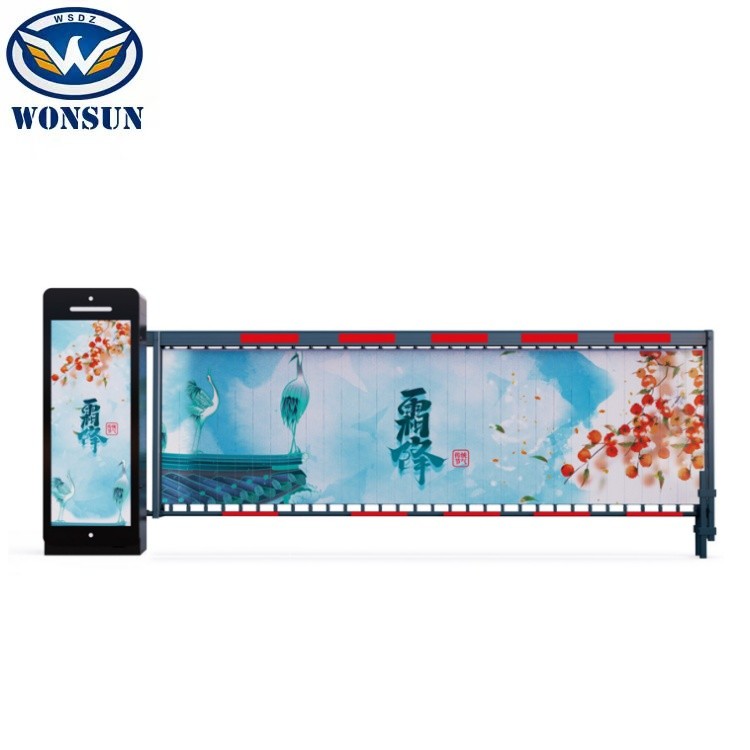

Heavyweight Brushless Advertising Gate can be wildly use in
Commercial areas and residential areas
product description
| Model No. | DZ-2332 Heavyweight Brushless Advertising Gate |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 460 * 380 * 1280mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V/AC110v/AC220v;50/60HZ |
| Motor Consumption | 200W |
| Working Temperature | -35°C to +65°C |
| Relative Humidity | ≥90% |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 3M - 4M |
| Opening/Close Time | 2.5sec~8sec |
Functions and Features:
1 The running speed can be adjusted from (2.5sec-8sec)
2 Arm direction can be quickly interchanged
3 Barrier gate up and down signal relay switch output
4 External loop detector signal anti-smashing interface
5 Infrared sensor signal anti-smashing interface
6 R&G Traffic light relay switch signal output
7 Count mode interface
8 Arm swing out function,when the vehicle hit the barrier gate,the
arm can be swing out to avoid further damage on the vehicle barrier
machinery core
9 High-sensitivity Arm auto reverse function(intensity can be
adjusted)
10 Parking system interface
11 RS485 communication interface
12 Power off the backup battery interface
13 Automatic Arm lift function when power off(need to add more
power storage module)
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can also choose your own shipping forwarder. it
normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate
package.
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your
requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box
packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply
you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services
who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products ,
can customize the retail box packing and other things.
4. We have very experienced engineers ,can help you better use it.
