    1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged

    Ask Lasest Price
    Brand Name : WONSUN
    Model Number : DZ-2228
    Certification : CE
    Price : $279/Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3000 Set/Sets per Month
    Delivery Time : 5-8 work day
    • Product Details
    • Company Profile

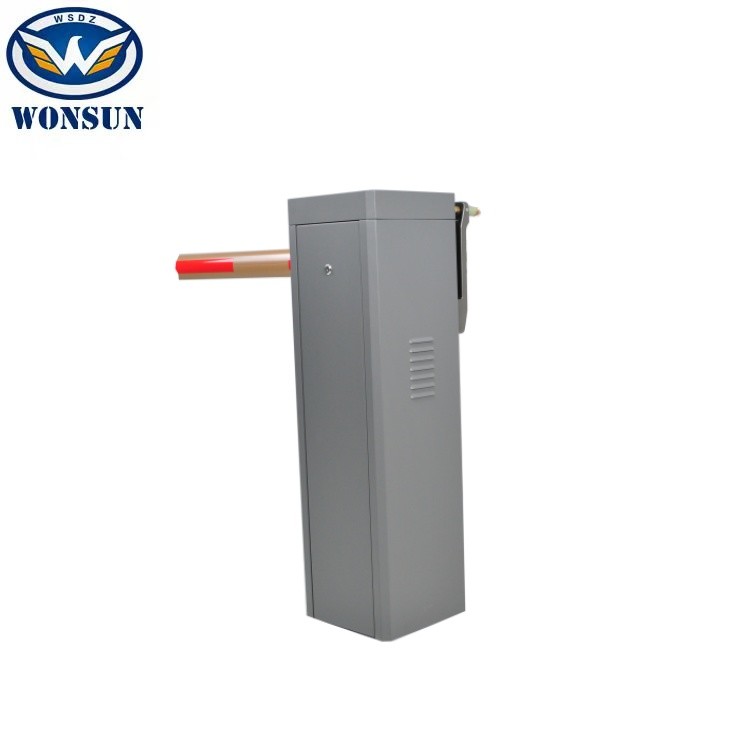

    1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged

    1st Gengeration None-Spring Barrier Gate Simple design with Arm Direction Can Be Quickly Interchanged use in traffic barrier


    product description

    Model No.DZ-2228 None-Spring Barrier Gate
    Framework MaterialCold-roll sheet
    BeamAluminum alloy
    Dimension280 * 280* 975mm
    Net Weight48KG
    Input InterfacePhoto cell, loop detector, parking system,wire control
    Input12V relay signal or Pulse Wide>100MS
    Power SupplyDC24V/AC110V/220V;50/60HZ
    Motor Consumption200W
    Working Temperature-35°C to +65°C
    Relative Humidity≥90%
    MCBF5million time
    Push ButtonSupport
    Remote ControlTwo button remote transmitter, Distance≤100m
    Optional AccessoriesLoop detector; IR photo cell
    Beam Length4.5 meters;6 meters
    Opening/Close Time

    1.2sec~3sec;2.5sec~6sec


    Functions and Features:

    1 The running speed can be adjusted from 1.2sec~3sec;2.5sec~6sec

    2 Arm direction can be quickly interchanged

    3 When power off ,manual open and close arm,and lock itself

    4 Wireless remote

    5 Photocell port output

    6 Loop detector anti-collision port output

    7 Open and close control input

    8 12V battery input port

    9 Traffic light siganl output

    10 Open and close limit signal output

    11 Counting (fleet)

    12 24V battery input port

    13 Delay close arm function (1-300sec adjustable)

    14 Open and close arm function (force adjustable)

    15 Input RS485 communication(Force adjustable)

    16 Am auto reverse function when power off(need to add power storage module)

    1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged1st Gengeration None-Spring Traffic Bar Barrier Gate Simple Design With Arm Direction Quickly Interchanged


    Our Services

    Service for free:
    1. One year free service is supplied(not including the arm and remote)

    2. Lifetime charged service is supplied

    3. Technical service is supplied

    4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

    5. Technical support and aftersales service, it is a long term relatioship between us.

    6. Price can be negotiable when you have big order quantity.


    Service for charging:

    1. Broken by wrong installation

    2. Broken by improper voltage

    3. The surfaces of the barrier destroyed by wrong installation and usage

    4. Overdue service items are out of our promise.


    FAQ

    Q: Are you trading company or manufacturer ?
    A: We are a professional barrier gate manufacturer, indusrty and trade integration.
    Q: How long is your delivery time?
    A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

    We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
    Q: How about payment terms our company provide?
    A: T/T or Western Union or
    Q: Do you provide samples ?
    A:No,we don't provide free samples. The MOQ of our products is 1pc.
